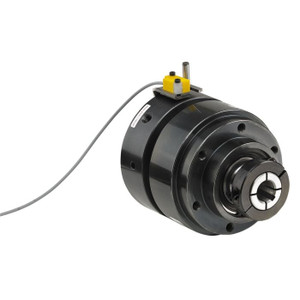

Nexen 801870 Air Engaged Torque Limiter
NexenAir Engaged Torque Limiter
TL60A*1.375 BORE,AIR,SPCL
Air Engaged, Shaft Mount, Straight Bore, Single Position
Application Considerations: Now Improved With Turck Proximity Sensor (Click User Manual In Left Column For Installation Details) Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure
Bore Size=1.375 in, Machined Bore with Keyway
Product Features=Air Engaged, Shaft Mount, Straight Bore, Single Position; Restrictions=Consult Nexen For Engagement at Differential Speeds
- Weight:
- 52 lbs
- Output Type:
- Pilot
- Min Sprocket Size:
- 40/48T, 50/38T, 60/32T, 80/25T, 100/21T
- Engagement Method:
- Air
- Release Method:
- Spring
- Number Of Engagement Positions:
- 1, @ 360°
- Max Speed:
- 1050 RPM
- Drive Inertia:
- 165.89 lbin²
- Shaft Inertia:
- 71.00 lbin²
- Backlash:
- 0.23 °
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Engagement Position Hunting Torque:
- 1082 inlb, @ 80 psi/165 inlbs @ 15 psi.
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 15 psi
- Inlet Size:
- 0.250-18 NPTM
- Hose Length:
- 8.25 in
- Cable Length:
- 2 m
- Number of Sensors:
- 1
- Housing Type:
- Open
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 2.620 in³
- Materials Of Construction:
- Bare Machined Aluminum Air Chamber Black Oxide Pilot
- Sensor Function:
- Disengagement
- Sensor 1 Function:
- Disengagement
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Inductive Proximity
- Min Disengagement Torque:
- 1650 inlb
- Max Disengagement Torque:
- 10820 inlb
