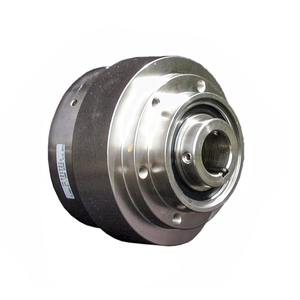

Nexen 802934 Air Engaged Enclosed Torque Limiter
NexenAir Engaged Enclosed Torque Limiter
TL50A-E*40MM BORE,AIR,METRIC
Air Engaged, Shaft Mount, Straight Bore, Single Position, Enclosed
Configuration Notes: Special Unit With 2 Engagement Positions Application Considerations: Now Improved With Turck Proximity Sensor (Click User Manual In Left Column For Installation Details) Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure Nexen Does Not Offer Couplings For Metric TL's, See Inch TL's With A Metric Bore
Bore Size=40 mm, Machined Bore with Keyway
Product Features=Air Engaged, Shaft Mount, Straight Bore, Single Position, Enclosed; Restrictions=Consult Nexen For Engagement at Differential Speeds
- Weight:
- 38 lbs
- Output Type:
- Pilot
- Min Sprocket Size:
- 40/42T, 50/34T, 60/29T, 80/23T,100/19T
- Engagement Method:
- Air
- Release Method:
- Spring
- Number Of Engagement Positions:
- 2, @ 180°
- Max Speed:
- 1200 RPM
- Drive Inertia:
- 277.24 kgcm²
- Shaft Inertia:
- 102.41 kgcm²
- Backlash:
- 0.27 °
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- 0 °C
- Max Ambient Temperature:
- 66 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP55
- Bore Details:
- Straight
- Max Operating Pressure:
- 6.0 bar
- Min Engagement Pressure:
- 1.0 bar
- Inlet Size:
- 0.250 BSPT
- Hose Length:
- 209.5 mm
- Cable Length:
- 2.0 m
- Number of Sensors:
- 1
- Housing Type:
- Enclosed
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 29.497 cm³
- Materials Of Construction:
- Nickel Plated
- Sensor Function:
- Disengagement
- Sensor 1 Function:
- Disengagement
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Inductive Proximity
- Min Disengagement Torque:
- 136 Nm
- Max Disengagement Torque:
- 750 Nm
