Description

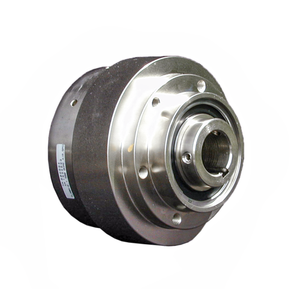

TL-A-E Enclosed Torque Limiter TL40A-E 30MM BORE,JS9,AIR
View AllClose
Special Inch Unit With Metric Bore And JSA Keyway To Accept Nexen Couplings For Shaft To Staft Applications | |
Features: | Now Improved With Turck Proximity Sensor (Click User Manual In Left Column For Installation Details) |
Comments: | Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure |
Comments: | "Nexen Does Not Offer Couplings For Metric TL's, See Inch TL's With A Metric Bore" |
Open Or Enclosed Design: | Enclosed |
Drive Arrangement: | Pilot Mount |
Bore Size: | 30 mm |
Bore Style: | Straight |
Maximum Static Clutch Torque: | 500 Nm |
Minimum Static Clutch Torque: | 102 Nm |
Backlash: | 0.28° |
Number Of Engagement Positions: | 1 @ 360° |
Minimum Sprocket Size: | "40/40T, 50/30T, 60/26T, 80/20T" |
Drive Inertia: | 160.12 kgcm² |
Shaft Inertia: | 73.74 kgcm² |
Max Rpm: | 1350 |
Sensor Type: | Proximity Sensor |
Actuation/Return: | Air/Spring |
Port Size: | 0.125 NPT |
Hose Length: | 209.5 mm |
Maximum Operating Pressure: | 6.0 bar |
Minimum Engagement Pressure: | 1.0 bar |
Temperature Range: | 0 - 66 C |
Clutch Air Chamber Volume When New: | 25.564 cm³ |
Cable Length: | 2.0 M |
Ratings: | "NEMA MG1-2006 1.26.6 (Waterproof Machines), IP55, CE, And RoHS" |
Finish: | Nickel Plated |
Restrictions: | Consult Nexen For Engagement at Differential Speeds |
Shipping Weight: | 28.5 LB |
