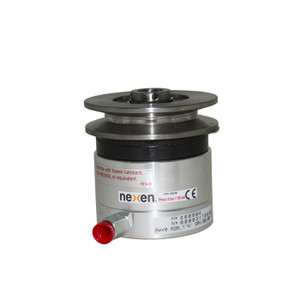

Nexen 805233 Air Engaged Shaft Mounted Clutch
NexenAir Engaged Shaft Mounted Clutch
L-600*1.125,2-3V,06.00 OD,TEF
Air Engaged, Keyed, Straight Bore, Shaft Mount
Application Considerations: Special Teflon Facing For Reduced Torque Output, Smoother Operation At Low Differential RPM's, And Very Long Life.
Length=5.56 in; Outer Diameter=6.06 in; Input Bore Min Shaft Insertion=2.50 in, From Pilot End Full From Air Chamber End; Bore Size=1.125 in, Machined Bore with Keyway, 0.625-1.000 in with Optional Adapter Bushings
Product Features=Air Engaged, Keyed, Straight Bore, Shaft Mount
- Weight:
- 20.1 lbs
- Output Type:
- V-Belt Pulley, 2-3V, 6.00 in OD Sheave
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 3600 RPM
- Shaft Inertia:
- 16.13 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Dynamic Torque:
- 126 inlb
- Clutch Facing Type:
- Teflon (Ultra Low) Coefficient
- Clutch Facing Edge Color Code:
- No Color Code, Tan Overall
- Approximate Clutch Facing Life:
- 1716 hphr
- Clutch Facing Effective Area:
- 18.62 in²
- Max Clutch Continuous Thermal Dissipation:
- 0.38 hp
- Clutch Heat Sink Capacity:
- 60000 ftlb
- Clutch Peak Thermal Input Rate:
- 8.40 hp
- Operating Range:
- 3-85 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway, Nexen Adapter Bushing Required
- Clutch Air Chamber Volume When New:
- 0.327 in³
- Clutch Air Chamber Volume When Worn Out:
- 0.855 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
