Nexen 805294 AC 2 Friction Clutches L-600 25MM,PILOT MOUNT,NSB,LOCO

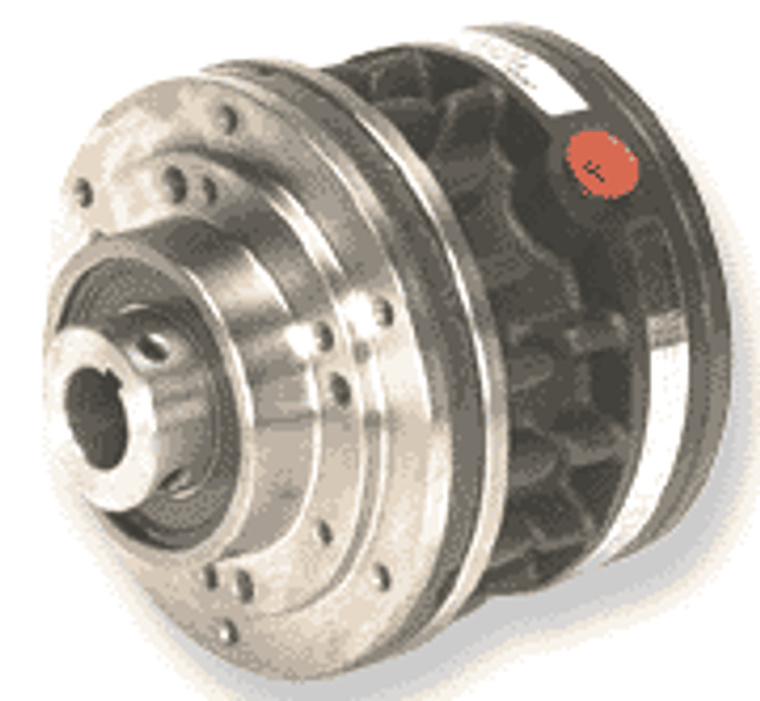

Nexen 805294 Air Engaged Shaft Mount Friction Clutch

Nexen
SKU:
805294
Availability:
Contact us to confirm availability and lead times.
$912.00
Condition:
New
Current Stock:
Description

Air Engaged Shaft Mount Friction Clutch



L-600*25MM,PILOT MOUNT,NSB,LOCO

Air Engaged, Keyed, Straight Bore, Shaft Mount, Pilot Output

Configuration Notes: Inch Unit With Metric Bore, Often Used With A Nexen Coupling Pilot Mount Clutches Accept Customer Supplied Pulleys Or Sprockets, Or Nexen Couplings Can Be Configured As A DRIVING Shaft Mounted Clutch-Brake With Disc And Caliper Listed Under Accessories In Left Column

Length=5.56 in; Outer Diameter=6.06 in; Pilot Size=3.000 in; Input Bore Min Shaft Insertion=2.50 in, From Pilot End Full From Air Chamber End; Bore Size=25 mm, Machined Bore with Keyway; Output Bolt Circle=3.5 in; Output Bolt Hole Size=4 0.250-20 in, Holes @ 90°

Product Features=Air Engaged, Keyed, Straight Bore, Shaft Mount, Pilot Output
Additional Information
Weight:
16.5 lbs
Output Type:
Pilot
Min Sprocket Size:
35/40T, 40/30T, 50/25T, 60/21T
Mounting Style:
Shaft
Anti Rotation Style:
Optional brake disc can stop output with optional caliper brake
Engagement Method:
Air
Release Method:
Spring
Max Speed:
3600 RPM
Drive Inertia:
27.47 lbin²
Shaft Inertia:
16.13 lbin²
Backlash:
0.44 °
Open Or Enclosed Design:
Open
Primary Finish:
Black Oxide
Min Ambient Temperature:
32 °F
Max Ambient Temperature:
150 °F
CE Certified:
CE
RoHS Compliant:
RoHS
Bore Details:
Straight With Keyway And 2 Setscrews
Max Static Clutch Torque:
222 inlb
Clutch Facing Type:
Low Coefficient
Clutch Facing Edge Color Code:
Green
Approximate Clutch Facing Life:
954 hphr
Clutch Facing Effective Area:
18.62 in²
Max Clutch Continuous Thermal Dissipation:
0.75 hp
Clutch Heat Sink Capacity:
60000 ftlb
Clutch Peak Thermal Input Rate:
16.80 hp
Max Operating Pressure:
80 psi
Min Engagement Pressure:
5 psi
Inlet Size:
0.125 NPT
Bore Style:
Machined Bore with Keyway
Clutch Air Chamber Volume When New:
0.327 in³
Clutch Air Chamber Volume When Worn Out:
0.855 in³
Materials Of Construction:
Black Oxide
Output Shaft Style:
None
