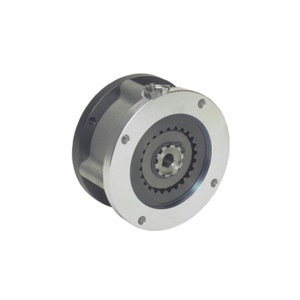

Nexen 808342 Spring Engaged Brake
NexenSpring Engaged Brake
SE1000-1*1.375 BORE,SPCL
Spring Engaged, NEMA C-Face, Flange/Foot/Shaft Mount, Through Bore, Manual Release
Use Adapter Shaft If Between Motor And Reducer, Or Output Unit For Overhung Loads Like Pulley Or Sprocket
Outer Diameter=9.00 in; Pilot Size=8.50 in; Bore Size=1.375 in, Machined Bore with Keyway; Output Shaft Diameter=N/A; Output Bore Diameter=N/A; Input Bolt Circle Diameter=7.250 in; Input Bolt Hole Size=0.530 in; Input Pilot Diameter=8.500 in; Input Pilot Depth=0.22 in; Output Pilot Diameter=8.500 in; Output Pilot Height=0.750 in; Output Bolt Circle=7.25 in; Output Bolt Hole Size=0.500-13 in
Product Features=Spring Engaged, NEMA C-Face, Flange/Foot/Shaft Mount, Through Bore, Manual Release; Restrictions=Do Not Use In High Speed Vertical Shaft Or High Cycle Rate Applications, For Overhung Loads From Pulley/Sprocket/Etc.. An Output Unit Accessory Is Required; Braking Capability=E-Stop, Holding
- Weight:
- 29 lbs
- Mounting Style:
- Foot, Motor or Reducer, Shaft
- Anti Rotation Style:
- Flange, Optional Feet, Optional Torque Arm
- Engagement Method:
- Spring
- Release Method:
- Air
- Max Speed:
- 1800 RPM
- Overhung Load Capacity:
- Optional See Output Unit In Accessories
- Shaft Inertia:
- 12960 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Manual Release Feature:
- Yes
- Input Frame Size:
- NEMA 213T/TC, 215T/TC
- Output Frame Size:
- NEMA 213T/TC, 215T/TC
- Bore Details:
- Straight
- Min Static Brake Torque:
- 575 inlb
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 356 hphr
- Brake Facing Effective Area:
- 38.1 in²
- Max Brake Continuous Thermal Dissipation:
- 0.20 hp
- Brake Peak Thermal Input Rate:
- 34.00 hp
- Approximate Engagement Response Time:
- 30 ms
- Max Allowable Pressure:
- 120 psi
- Min Release Pressure:
- 40 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway
- Brake Air Chamber Volume When New:
- 78.400 in³
- Brake Air Chamber Volume When Worn Out:
- 16.200 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
