Description

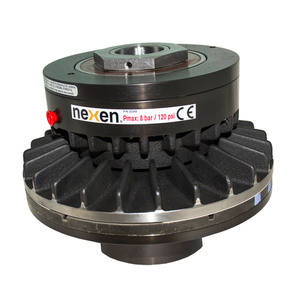

AC 1 Friction Clutches XHW 2.250,2'C'GROOVE,12.50 OD,SPCL
View AllClose
| Open Or Enclosed Design: | Open |
| Drive Arrangement: | "2-C, 12.50 in. OD Sheave" |
| Bore Size: | 2.250 in. |
| Minimum Shaft Insertion: | "5.63 in. From Pilot End, Full From Air Chamber End" |
| Bore Style: | Straight With Keyway And 3 Setscrews |
| Length: | 10.25 in. |
| Clutch Facing Type: | Standard Coefficient |
| Clutch Facing Edge Color Code: | Red |
| Maximum Static Clutch Torque: | 5000 inlbs |
| Maximum Clutch Continuous Thermal Dissipation: | 2.25 hp |
| Clutch Heat Sink Capacity: | 200000 ftlb |
| Clutch Peak Thermal Input Rate: | 60.10 hp |
| Shaft Inertia: | 272.98 lbin² |
| Max Rpm: | 1200 |
| Actuation/Return: | Air/Spring |
| Port Size: | 0.125 NPT |
| Maximum Operating Pressure: | 80 psi |
| Minimum Engagement Pressure: | 8 psi |
| Temperature Range: | 32 - 150 °F |
| Approximate Clutch Facing Life: | 4540 hphr |
| Clutch Air Chamber Volume When New: | 2.152 in³ |
| Clutch Air Chamber Volume When Worn Out: | 9.856 in³ |
| Ratings: | "CE, And RoHS" |
| Finish: | Black Oxide |
| Outer Diameter: | 12.50 in. |
| Shipping Weight: | 183.0 LB |
