Nexen 827150 BCB-FCB-LCB-MCB Clutch/Brakes FCB-450 0.875,PILOT MOUNT

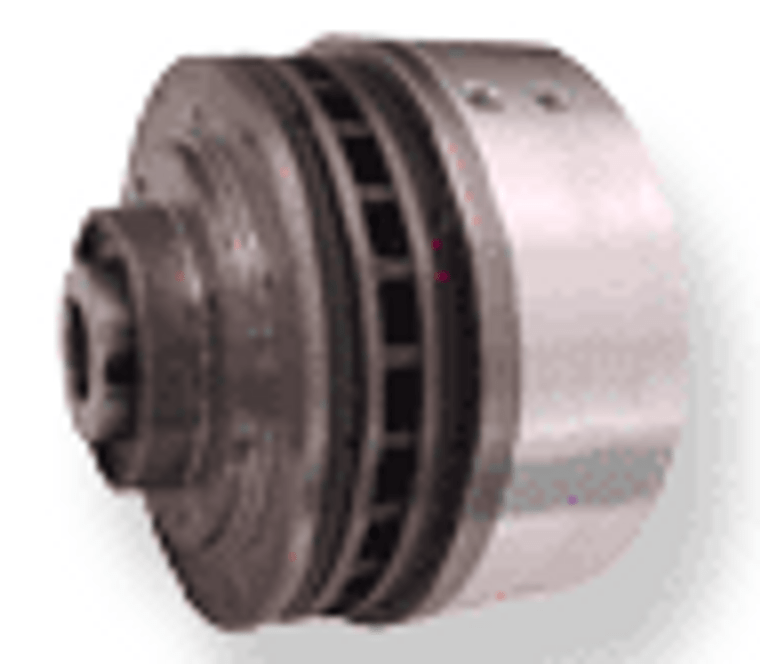

Nexen 827150 Shaft/Flange Mount Clutch-Brake

Nexen
SKU:
827150
Availability:
Contact us to confirm availability and lead times.
$1,148.00
Condition:
New
Current Stock:
Description

Shaft/Flange Mount Clutch-Brake



FCB-450*0.875,PILOT MOUNT

Air Engaged Brake, Air Engaged Clutch, Driven Shaft Mount, Straight Bore, Double Piston



Length=5.32 in; Outer Diameter=5.75 in; Pilot Size=2.500 in; Bore Size=0.875 in, Machined Bore with Keyway; Output Bolt Circle=3 in; Output Bolt Hole Size=4 0.250-20 in, Holes @ 90°; Coupling Size=2.625 in

Product Features=Air Engaged Brake, Air Engaged Clutch, Driven Shaft Mount, Straight Bore, Double Piston; Restrictions=Must Be Mounted On The Driven Shaft
Additional Information
Weight:
15.75 lbs
Output Type:
Pilot
Min Sprocket Size:
25/48T, 35/32T, 40/25T, 50/21T
Mounting Style:
Flange, Driven Shaft
Anti Rotation Style:
Flange
Max Speed:
3600 RPM
Drive Inertia:
6.6 lbin²
Open Or Enclosed Design:
Open
Primary Finish:
Black Oxide
Min Ambient Temperature:
32 °F
Max Ambient Temperature:
150 °F
CE Certified:
CE
RoHS Compliant:
RoHS
Bore Details:
Straight
Max Static Clutch Torque:
350 inlb
Max Static Brake Torque:
350 inlb
Brake Torque:
350 inlb
Clutch Facing Type:
Standard Coefficient
Clutch Facing Edge Color Code:
Red
Approximate Clutch Facing Life:
230 hphr
Clutch Facing Effective Area:
11.93 in²
Brake Facing Type:
Standard Coefficient
Brake Facing Edge Color Code:
Red
Approximate Brake Facing Life:
230 hphr
Brake Facing Effective Area:
11.9 in²
Max Clutch Continuous Thermal Dissipation:
0.30 hp
Max Brake Continuous Thermal Dissipation:
0.30 hp
Max Allowable Pressure:
120 psi
Max Operating Pressure:
80 psi
Inlet Size:
0.125 NPT
Coupling Type:
Elastomer
Bore Style:
Machined Bore with Keyway
Brake Air Chamber Volume When New:
1.954 in³
Brake Air Chamber Volume When Worn Out:
2.998 in³
Clutch Air Chamber Volume When New:
1.928 in³
Clutch Air Chamber Volume When Worn Out:
2.936 in³
Materials Of Construction:
Black Oxide
Output Shaft Style:
None
Clutch Side Engagement Method:
Air
Brake Side Engagement Method:
Air
