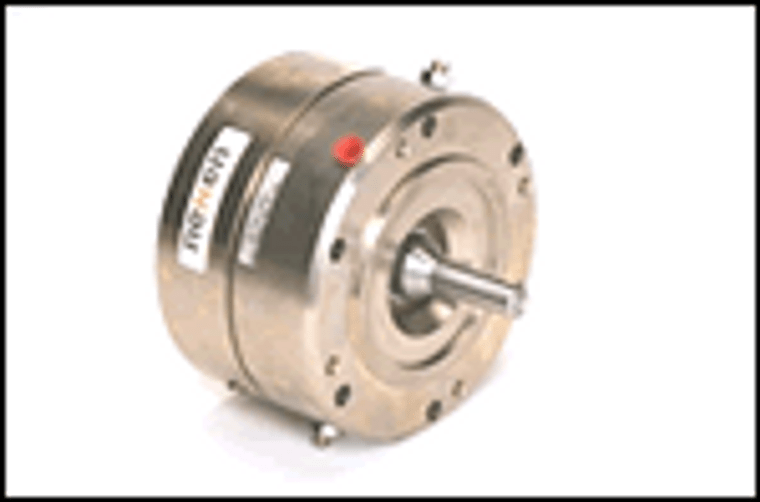

FMBES C-C Spring Engaged Brake FMBES-875CC 200 IN LBS
View AllClose
| Input Frame Size: | "143TC, 145TC" |
| Output Frame Size: | "143TC, 145TC" |
| Open Or Enclosed Design: | Enclosed |
| Bore Style: | Straight Bore/Shaft |
| Brake Facing Type: | Standard Coefficient |
| Brake Facing Edge Color Code: | Red |
| Minimum Static Brake Torque: | 200 inlbs |
| Maximum Brake Continuous Thermal Dissipation: | 0.30 hp |
| Overhung Load Capacity: | "170 lbs @ 3600 RPM, 1 in. From Pilot Face, For A 10,000 Hr Bearing Life" |
| Shaft Inertia: | 3.50 lbin² |
| Max Rpm: | 3600 |
| Input Bolt Circle: | 5.875 in. |
| Input Bolt Hole Size: | 0.410 in. |
| Input Pilot O.D.: | 4.500 in. |
| Output Bolt Circle: | 5.875 in. |
| Output Bolt Hole Size: | 0.375-16 in. |
| Output Pilot O.D.: | 4.500 in. |
| Actuation/Return: | Spring/Air |
| Port Size: | 0.125 NPT |
| Maximum Operating Pressure: | 80 psi |
| Minimum Release Pressure: | 40 psi |
| Temperature Range: | 32 - 150 °F |
| Approximate Engagement Response Time: | 30 ms |
| Approximate Brake Facing Life: | 160 hphr |
| Brake Air Chamber Volume When New: | 78.400 in³ |
| Brake Air Chamber Volume When Worn Out: | 16.200 in³ |
| Ratings: | "NEMA 1.26.55 (Waterproof Machines), CE, RoHS" |
| Finish: | Nickel Plated |
| Shipping Weight: | 28.0 LB |
