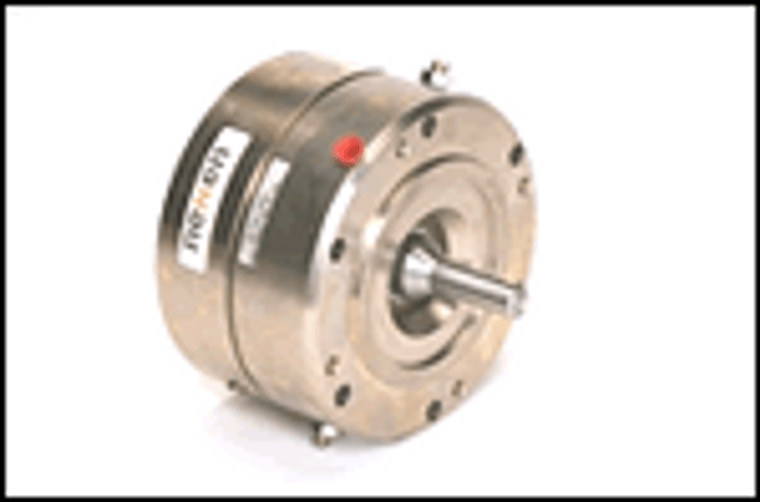

Nexen 827384 Spring Engaged Motor/Foot Mount Brake
NexenSpring Engaged Motor/Foot Mount Brake
FMBES-1375CC*900 IN LBS,32MM INPUT,SPCL
Spring Engaged, NEMA C-Face Or Foot Mount, Manual Release
Configuration Notes: Special With 32 MM Input Bore, Input Not ISO Frame Compliant
Bore Size=Machined Bore with Keyway; Input Bore Diameter=32 mm; Output Shaft Diameter=1.375 in; Input Bolt Circle Diameter=7.250 in; Input Bolt Hole Size=0.530 in; Input Pilot Diameter=8.500 in; Input Pilot Depth=0.20 in; Output Pilot Diameter=8.500 in; Output Pilot Height=0.250 in; Output Bolt Circle=7.25 in; Output Bolt Hole Size=0.500-13 in
Product Features=Spring Engaged, NEMA C-Face Or Foot Mount, Manual Release; Braking Capability=Cyclic Dynamic, E-Stop, Holding
- Weight:
- 56 lbs
- Mounting Style:
- Foot, Motor or Reducer
- Anti Rotation Style:
- Flange, Optional Feet
- Engagement Method:
- Spring
- Release Method:
- Air
- Max Speed:
- 1800 RPM
- Overhung Load Capacity:
- 290 lbs, At 1800 RPM, 1 in From Pilot Face, For A 10,000 Hr Bearing Life
- Shaft Inertia:
- 0.104 lbin²
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Output Frame Size:
- NEMA 213TC, 215TC
- Bore Details:
- Straight Bore/Shaft
- Min Static Brake Torque:
- 900 inlb
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 571 hphr
- Brake Facing Effective Area:
- 31.9 in²
- Max Brake Continuous Thermal Dissipation:
- 0.30 hp
- Approximate Engagement Response Time:
- 30 ms
- Max Allowable Pressure:
- 120 psi
- Min Release Pressure:
- 60 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway
- Brake Air Chamber Volume When New:
- 78.400 in³
- Brake Air Chamber Volume When Worn Out:
- 16.200 in³
- Materials Of Construction:
- Nickel Plated
- Output Shaft Style:
- Shaft with Keyway
