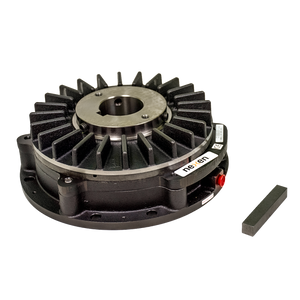

Nexen 828016 Air Engaged Shaft Mount Brake
NexenAir Engaged Shaft Mount Brake
S-800*42MM BORE,METRIC,SPCL
Air Engaged, Metric, Shaft Mount, Straight Bore
To Prevent Housing Rotation See Torque Pin Bracket Under Accessories
Length=92.1 mm; Outer Diameter=228.6 mm; Bore Size=42 mm, Machined Bore with Keyway; Input Keyway=12W x 8H x 90.7L mm
Product Features=Air Engaged, Metric, Shaft Mount, Straight Bore; Braking Capability=Continuous Slip, Cyclic Dynamic, E-Stop, Holding
- Weight:
- 28 lbs
- Mounting Style:
- Flange, Shaft
- Anti Rotation Style:
- Flange, Optional Torque Pin Bracket
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 1800 RPM
- Shaft Inertia:
- 335 kgcm²
- Backlash:
- 0.39 °
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 0 °C
- Max Ambient Temperature:
- 66 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Input Shaft Securement:
- 3, M6 x 1.0 , Set Screws @ 120°
- Max Static Brake Torque:
- 197 Nm
- Brake Torque:
- 197 Nm
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 914 kWhr
- Brake Facing Effective Area:
- 198 cm²
- Max Brake Continuous Thermal Dissipation:
- 1.60 kW
- Brake Heat Sink Capacity:
- 170000 Joule
- Brake Peak Thermal Input Rate:
- 20.90 kW
- Approximate Engagement Response Time:
- 70 ms
- Max Allowable Pressure:
- 8.3 bar
- Max Operating Pressure:
- 6.0 bar
- Min Engagement Pressure:
- 0.2 bar
- Inlet Size:
- 0.250 BSPT
- Bore Style:
- Machined Bore with Keyway
- Brake Air Chamber Volume When New:
- 28.251 cm³
- Brake Air Chamber Volume When Worn Out:
- 85.098 cm³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
