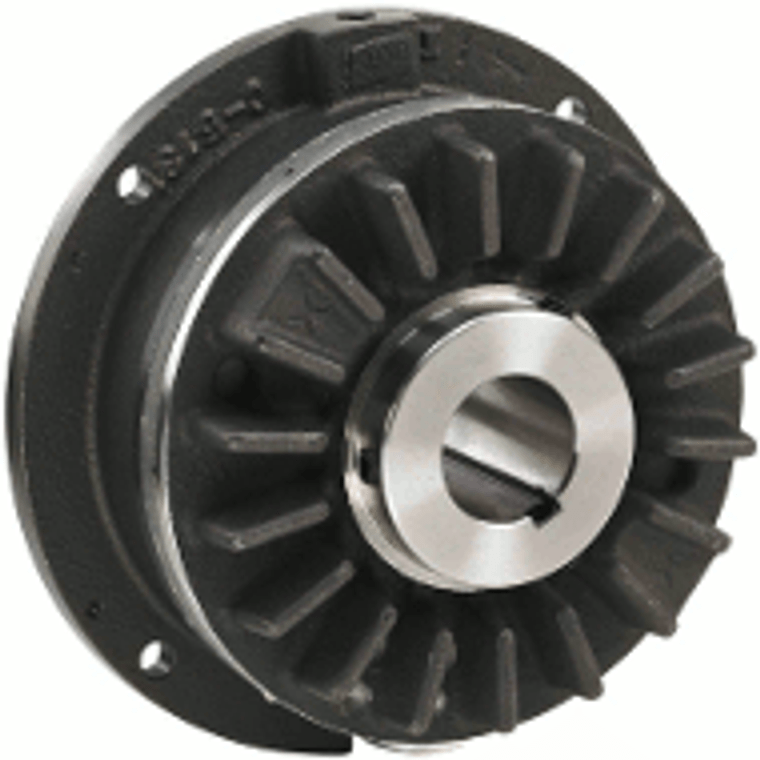

Nexen 828113 Air Engaged Shaft Mount Brake
NexenAir Engaged Shaft Mount Brake
S-1000*2.438 BORE,SPCL
Air Engaged, Shaft Mount, Straight Bore
To Prevent Housing Rotation See Torque Pin Bracket Under Accessories
Length=4.03 in; Outer Diameter=11.88 in; Bore Size=2.438 in, Machined Bore with Keyway
Product Features=Air Engaged, Shaft Mount, Straight Bore; Braking Capability=Continuous Slip, Cyclic Dynamic, E-Stop, Holding
- Weight:
- 55 lbs
- Mounting Style:
- Flange, Shaft
- Anti Rotation Style:
- Flange, Optional Torque Pin Bracket
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 1800 RPM
- Shaft Inertia:
- 282.24 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Static Brake Torque:
- 3450 inlb
- Brake Torque:
- 3450 inlb
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 3066 hphr
- Brake Facing Effective Area:
- 50.3 in²
- Max Brake Continuous Thermal Dissipation:
- 3.00 hp
- Brake Heat Sink Capacity:
- 200000 ftlb
- Brake Peak Thermal Input Rate:
- 45.00 hp
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 3 psi
- Inlet Size:
- 0.250 NPT
- Bore Style:
- Machined Bore with Keyway
- Brake Air Chamber Volume When New:
- 1.847 in³
- Brake Air Chamber Volume When Worn Out:
- 10.707 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
