Nexen 828120 Metric Friction Brakes T-1000 QD TYPE'E',METRIC

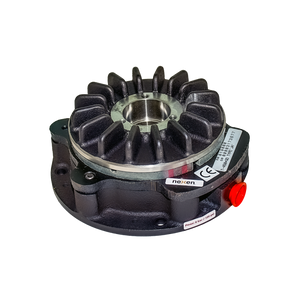

Nexen 828120 Air Engaged Shaft Mount QD Bore Brake

Nexen
SKU:
828120
Availability:
Contact us to confirm availability and lead times.
$2,132.00
Condition:
New
Current Stock:
Description

Air Engaged Shaft Mount QD Bore Brake



T-1000*QD TYPE'E',METRIC

Air Engaged, Metric, Shaft Mount, Taper Bore

To Prevent Housing Rotation See Torque Pin Bracket Under Accessories

Length=4.44 in; Outer Diameter=11.88 in; Bore Size=28.00-75.00 mm Customer Taper Bushing Required

Product Features=Air Engaged, Metric, Shaft Mount, Taper Bore; Braking Capability=Continuous Slip, Cyclic Dynamic, E-Stop, Holding
Additional Information
Weight:
52 lbs
Mounting Style:
Flange, Shaft
Anti Rotation Style:
Flange, Optional Torque Pin Bracket
Engagement Method:
Air
Release Method:
Spring
Max Speed:
1800 RPM
Shaft Inertia:
826 kgcm²
Open Or Enclosed Design:
Open
Primary Finish:
Black Oxide
Min Ambient Temperature:
0 °C
Max Ambient Temperature:
66 °C
CE Certified:
CE
RoHS Compliant:
RoHS
Bore Details:
QD Type E
Max Static Brake Torque:
420 Nm
Brake Torque:
420 Nm
Brake Facing Type:
Standard Coefficient
Brake Facing Edge Color Code:
Red
Approximate Brake Facing Life:
2286 kWhr
Brake Facing Effective Area:
324 cm²
Max Brake Continuous Thermal Dissipation:
2.23 kW
Brake Heat Sink Capacity:
271000 Joule
Brake Peak Thermal Input Rate:
33.60 kW
Approximate Engagement Response Time:
70 ms
Max Allowable Pressure:
8.3 bar
Max Operating Pressure:
6.0 bar
Min Engagement Pressure:
0.2 bar
Inlet Size:
0.250 BSPT
Bore Style:
Customer Taper Bushing Required
Brake Air Chamber Volume When New:
30.267 cm³
Brake Air Chamber Volume When Worn Out:
175.456 cm³
Materials Of Construction:
Black Oxide
Output Shaft Style:
None
