Description

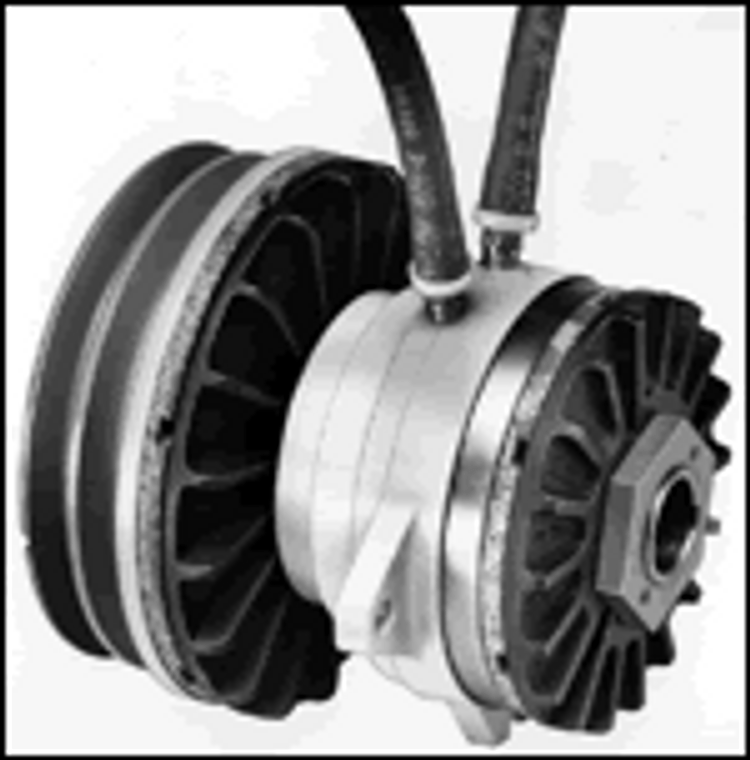

F/L/M/HWCB Clutch / Brakes LWCB 1.000,2'A' GRV,04.40 PD
View AllClose
"The LCB-600, Prod # 828953 May Be An Alternative" | |
Open Or Enclosed Design: | Open |
Drive Arrangement: | "2-A, 4.40 in. PD Sheave" |
Bore Size: | 1.000 in. |
Bore Style: | Straight |
Length: | 6.19 in. |
Clutch Facing Type: | Standard Coefficient |
Clutch Facing Edge Color Code: | Red |
Brake Facing Type: | Standard Coefficient |
Brake Facing Edge Color Code: | Red |
Maximum Static Clutch Torque: | 350 inlbs |
Maximum Static Brake Torque: | 400 inlbs |
Maximum Clutch Continuous Thermal Dissipation: | 0.40 hp |
Maximum Brake Continuous Thermal Dissipation: | 0.52 hp |
Clutch Heat Sink Capacity: | 45000 ftlb |
Brake Heat Sink Capacity: | 25000 ftlb |
Clutch Peak Thermal Input Rate: | 17.00 hp |
Brake Peak Thermal Input Rate: | 11.00 hp |
Shaft Inertia: | 14.20 lbin² |
Max Rpm: | 1800 |
Actuation/Return: | Air/Spring |
Port Size: | 0.125 NPT |
Maximum Operating Pressure: | 80 psi |
Minimum Engagement Pressure: | 5 psi |
Temperature Range: | 32 - 150 °F |
Approximate Clutch Facing Life: | 572 hphr |
Approximate Brake Facing Life: | 230 hphr |
Clutch Air Chamber Volume When New: | 0.327 in³ |
Clutch Air Chamber Volume When Worn Out: | 0.864 in³ |
Brake Air Chamber Volume When New: | 0.629 in³ |
Brake Air Chamber Volume When Worn Out: | 1.422 in³ |
Ratings: | "CE, And RoHS" |
Finish: | Black Oxide |
Outer Diameter: | 6.00 in. |
Restrictions: | Must Be Mounted On The Driven Shaft |
Shipping Weight: | 20.9 LB |
