Description

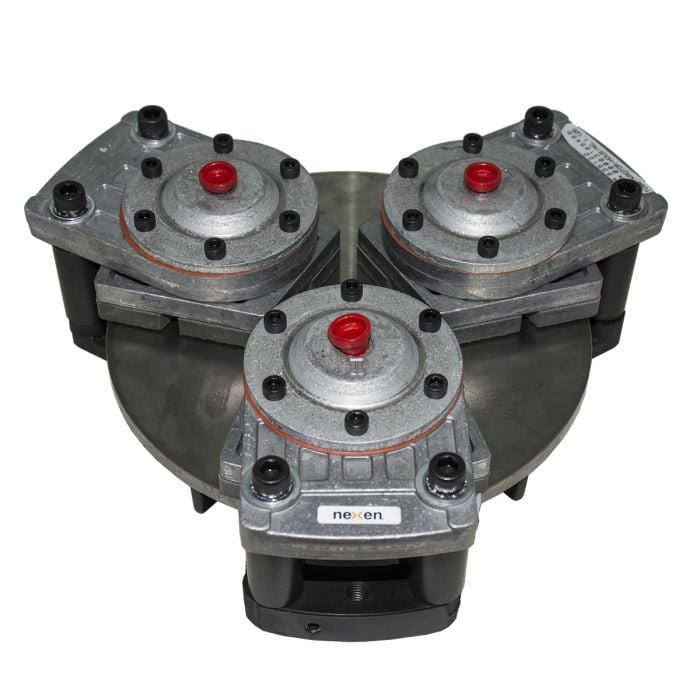

TCB Tension Control Brakes TCB07 ROTOR-HOUSING,1.125,LCO
View AllClose
Features: | "Includes Housing, Disc, Hub, Calipers, And Facings" |
Open Or Enclosed Design: | Open |
Bore Size: | 1.125 in. |
Bore Style: | Straight |
Length: | 5.32 in. |
Brake Facing Type: | Low Coefficient |
Brake Facing Edge Color Code: | Green |
Maximum # Of Calipers: | 3 |
Maximum Brake Continuous Thermal Dissipation: | 1.60 hp |
Brake Peak Thermal Input Rate: | 16.00 hp Per Caliper |
Maximum Dynamic Torque With All Calipers: | 240 inlbs |
Shaft Inertia: | 32.98 lbin² |
Max Rpm: | 1800 |
Actuation/Return: | Air/Spring |
Port Size: | 0.125 NPT Or 5/32 in. Plastic Tubing |
Maximum Operating Pressure: | 85 psi |
Minimum Engagement Pressure: | 1 psi |
Temperature Range: | 32 - 150 °F |
Approximate Brake Facing Life: | 804 hphr |
Ratings: | "CE, And RoHS" |
Finish: | "Black Oxide Housing And Disc, Bare Cast Aluminum Calipers" |
Outer Diameter: | 9.25 in. |
Shipping Weight: | 15.0 LB |
