Nexen 835155 TCB Tension Control Brakes TCB20 ROTOR,QD'J'

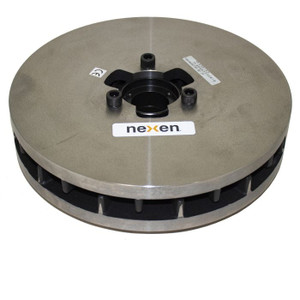

Nexen 835155 Rotary Brake Rotor With Hub

Nexen
SKU:
835155
Availability:
Contact us to confirm availability and lead times.
$4,016.00
Condition:
New
Current Stock:
Description

Rotary Brake Rotor With Hub



TCB20*ROTOR,QD'J'

Ventilated, Disc With Hub Only

Application Considerations: 2 Inch Thick, Ventilated Rotor With Hub, For TCC Clutch, And TCB Brake

Outer Diameter=20 in; Bore Size=1.500-3.875 in Customer Taper Bushing Required; Disc Thickness=2.06 in; Disc Diameter=20 in

Product Features=Ventilated, Disc With Hub Only
Additional Information
Weight:
135 lbs
Max Speed:
1800 RPM
Shaft Inertia:
5498.28 lbin²
Primary Finish:
Black Oxide
CE Certified:
CE
RoHS Compliant:
RoHS
IEC IP Rating:
0
Bore Details:
QD Type J, Customer Provides
Max Brake Continuous Thermal Dissipation:
16.6 hp
Brake Heat Sink Capacity:
1535000 ftlb
Direction Of Rotation:
Bidirectional
Bore Style:
Customer Taper Bushing Required
Materials Of Construction:
Black Oxide
