Nexen 835157 TCB Tension Control Brakes TCB14 ROTOR,BLANK BORE

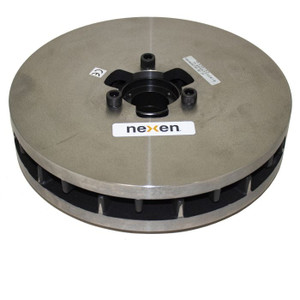

Nexen 835157 Rotary Brake Rotor With Hub

Nexen
SKU:
835157
Availability:
Contact us to confirm availability and lead times.
$2,648.00
Condition:
New
Current Stock:
Description

Rotary Brake Rotor With Hub



TCB14*ROTOR,BLANK BORE

Ventilated, Disc With Hub Only

Application Considerations: 2 Inch Thick, Ventilated Rotor With Hub, For TCC Clutch, And TCB Brake

Outer Diameter=14 in; Bore Size=1.000 in, Blank Bore can be finished up to 2.000 in; Input Keyway=None, Customer Provides; Disc Thickness=2.06 in; Disc Diameter=14 in

Product Features=Ventilated, Disc With Hub Only
Additional Information
Weight:
63 lbs
Max Speed:
2500 RPM
Shaft Inertia:
1298.88 lbin²
Primary Finish:
Black Oxide
CE Certified:
CE
RoHS Compliant:
RoHS
IEC IP Rating:
0
Bore Details:
Unfinished Pilot Bore
Input Shaft Securement:
None, Customer Provides
Max Brake Continuous Thermal Dissipation:
9.6 hp
Brake Heat Sink Capacity:
998000 ftlb
Direction Of Rotation:
Bidirectional
Bore Style:
Unfinished Blank Bore
Materials Of Construction:
Black Oxide
