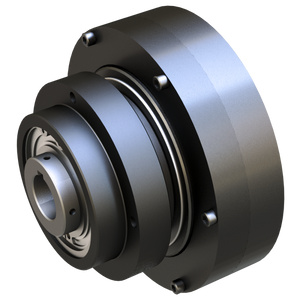

Nexen 910097 Spring Engaged Tooth Clutch
NexenSpring Engaged Tooth Clutch
5H35SE*1.125 BORE,BASIC,SPRING ENGAGED
Spring Engaged, Air Released, Flange Mount, Non-Positioning
Application Considerations: Flange Should Be Mounted To Another Bearing Supported Element Or Rigid Plate If Used As A Holding Brake If Mounting A Pulley, Sprocket, Coupling, Or Putting Moment Loads On Output See The 5H##P Series When The Clutch Engages An Up To 1.7° Shaft To Output Flange Rotational Displacement Can Occur As The Teeth Self Align Most Common Use Is As A Holding Brake, Often In Assembly And Fixturing Applications
Bore Size=1.125 in, Machined Bore with Keyway
Product Features=Spring Engaged, Air Released, Flange Mount, Non-Positioning; Restrictions=Consult Nexen For Use In Cyclic Applications, Engagement At Differential Speeds, Or Use As A Brake
- Weight:
- 11 lbs
- Mounting Style:
- Shaft
- Anti Rotation Style:
- Flange
- Engagement Method:
- Spring
- Release Method:
- Air
- Number Of Engagement Positions:
- 106
- Max Speed:
- 3200 RPM
- Backlash:
- 0.35 °
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 1480 inlb
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Release Pressure:
- 45 psi
- Air Chamber Volume:
- 0.492 in³
- Inlet Size:
- 0.125-27 NPTM
- Hose Length:
- 8.25 in
- Positioning:
- Non-Positioning
- Bore Style:
- Machined Bore with Keyway
- Materials Of Construction:
- Machined Aluminum Air Chamber Black Oxide Flange
- Output Configuration:
- Flange
