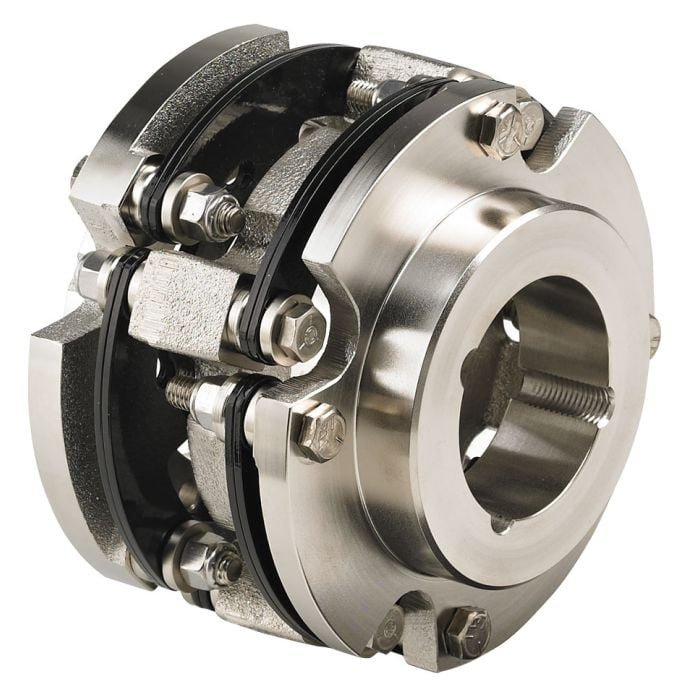

Nexen 910181 Shaft To Shaft Coupling Adapter
NexenShaft To Shaft Coupling Adapter
4/5H40*COUPLING,DBL FLEX,TL #2012
Shaft to Shaft, Misalignment Capability
Application Considerations: Coupling Bolts To The Clutch Pilot To Allow Shaft To Shaft Coupling External Bushing Insertion For Open End Applications The Listed Misalignment Ratings Are Maximums, The Sum Of The % Of Each Utilized Cannot Exceed 100% Nexen Does Not Provide The Taper Lock Bushing
Bore Size=0.500 to 2.000 Customer Taper Bushing Required; Max Parallel MisAlignment=0.085 in; Max Angular MisAlignment=3.0 °; Max Axial Float=0.160 in
Product Features=Shaft to Shaft, Misalignment Capability
- Weight:
- 16 lbs
- Torsional Rigidity:
- 32523 inlb, Per Degree
- Axial Stiffness:
- 626 lb/in
- Backlash:
- 0 rad
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- -70 °F
- Max Ambient Temperature:
- 250 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- External Taper Lock #2012, Customer Provides
- Max Continuous Torque:
- 6750 inlb
- Max Torque:
- 13500 inlb
- Buckling Torque:
- 20300 inlb
- Coupling Type:
- Composite Flexible Element
- Bore Style:
- Customer Taper Bushing Required
- Materials Of Construction:
- Nickel Plated
