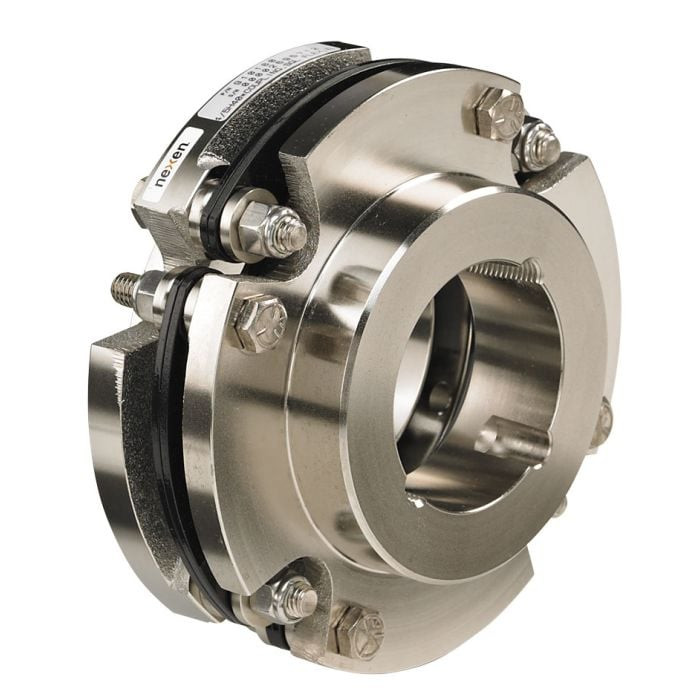

Nexen 910186 Shaft To Shaft Coupling Adapter
NexenShaft To Shaft Coupling Adapter
4/5H40*COUPLING,SGL FLEX,1.250 BORE,SPCL
Shaft to Shaft, Misalignment Capability
Configuration Notes: Special Without Nickle Plating And 1.250 in Keyed Bore With Setscrews Application Considerations: Coupling Bolts To The Clutch Pilot To Allow Shaft To Shaft Coupling The Listed Misalignment Ratings Are Maximums, The Sum Of The % Of Each Utilized Cannot Exceed 100%
Bore Size=1.250 in, Machined Bore with Keyway; Input Keyway=0.250 x 0.250 in; Max Parallel MisAlignment=0.013 in; Max Angular MisAlignment=1.5 °; Max Axial Float=0.080 in
Product Features=Shaft to Shaft, Misalignment Capability
- Weight:
- 10.5 lbs
- Torsional Rigidity:
- 65046 inlb, Per Degree
- Axial Stiffness:
- 1252 lb/in
- Backlash:
- 0 rad
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- -70 °F
- Max Ambient Temperature:
- 250 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight With Keyway And 3 Set Screws At 120°, Customer Provides
- Max Continuous Torque:
- 6750 inlb
- Max Torque:
- 13500 inlb
- Buckling Torque:
- 20300 inlb
- Coupling Type:
- Composite Flexible Element
- Bore Style:
- Machined Bore with Keyway
- Materials Of Construction:
- Black Oxide
