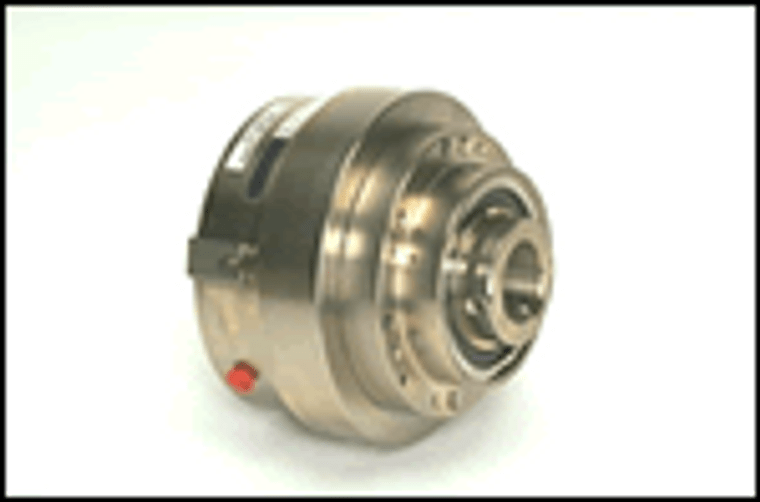

Spring Engaged Tooth Clutch
5H80PSE-E*2.875 BORE,PILOT,NSB
Spring Engaged, Air Released, Pilot Mount, Non-Positioning, Enclosed
Application Considerations: Pilot Mount, Enclosed, Spring Engaged The Enclosure Seal On Outer Housing Can Generate Up To 200°F When New Depending On The 5HP-E Size And RPM. Time To Break In And Temperature To Drop Will Vary With Application.
Pilot Size=7.375 in; Bore Size=2.875 in, Machined Bore with Keyway; Output Bolt Circle=8.5 in; Output Bolt Hole Size=6 0.500-13 in, Holes @ 60°
Product Features=Spring Engaged, Air Released, Pilot Mount, Non-Positioning, Enclosed; Restrictions=Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
- Weight:
- 159.85 lbs
- Min Sprocket Size:
- 80/33T, 100/27T, 120/23T, 140/21T, 160/19T
- Mounting Style:
- Shaft
- Engagement Method:
- Spring
- Release Method:
- Air
- Number Of Engagement Positions:
- 244
- Max Speed:
- 800 RPM
- Drive Inertia:
- 349.01 lbin²
- Shaft Inertia:
- 73.45 lbin²
- Backlash:
- 0.22 °
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP55
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 32000 inlb
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 110 psi
- Min Release Pressure:
- 80 psi
- Air Chamber Volume:
- 2.647 in³
- Inlet Size:
- 0.250-18 NPTM
- Hose Length:
- 8.25 in
- Positioning:
- Non-Positioning
- Bore Style:
- Machined Bore with Keyway
- Materials Of Construction:
- Nickel Plated
- Output Configuration:
- Pilot
