Nexen 917804 4H Flange Mount Multi Disc 4H40 25MM BORE,BASIC,METRIC,SPCL

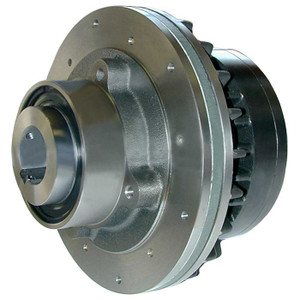

Nexen 917804 Air Engaged Shaft Mount Friction Clutch

Nexen
SKU:
917804
Availability:
Contact us to confirm availability and lead times.
$4,819.00
Condition:
New
Current Stock:
Description

Air Engaged Shaft Mount Friction Clutch



4H40*25MM BORE,BASIC,METRIC,SPCL

Air Engaged, Straight Bore, Shaft Mount, High Torque, With Loose Flange Mount Output

Application Considerations: Drive Shell Support Is Provided By Bearing Mounted Flywheel Or Pulley/Sprocket

Length=96.0 mm; Outer Diameter=127.0 mm; Pilot Size=No Pilot; Bore Size=25 mm, Machined Bore with Keyway; Output Bolt Circle=108 mm; Output Bolt Hole Size=3 M6-1.00 mm

Product Features=Air Engaged, Straight Bore, Shaft Mount, High Torque, With Loose Flange Mount Output; Restrictions=Consult Nexen For Use In Cyclic Applications, Or Use As A Brake
Additional Information
Weight:
11.63 lbs
Output Type:
Flange, Requires Bearing Support
Mounting Style:
Flange, Shaft
Anti Rotation Style:
Flange with pilot
Engagement Method:
Air
Release Method:
Spring
Max Speed:
1800 RPM, Max @ 3.5 Bar, 1400 @ 4.1 Bar, 1100 @ 4.8 Bar, 800 @ 5.5 Bar
Shaft Inertia:
14.25 kgcm²
Open Or Enclosed Design:
Open
Primary Finish:
Bare Aluminum
Min Ambient Temperature:
0 °C
Max Ambient Temperature:
66 °C
CE Certified:
CE
RoHS Compliant:
RoHS
Bore Details:
Straight
Max Static Clutch Torque:
28.2 Nm
Clutch Facing Type:
Standard Coefficient
Clutch Facing Edge Color Code:
Red
Approximate Clutch Facing Life:
79.8 kWhr
Clutch Facing Effective Area:
245.9 cm²
Max Clutch Continuous Thermal Dissipation:
0.11 kW
Clutch Heat Sink Capacity:
13002 Joule
Clutch Peak Thermal Input Rate:
25.58 kW
Max Operating Pressure:
5.5 bar
Min Engagement Pressure:
0.6 bar
Inlet Size:
0.125 BSPT
Bore Style:
Machined Bore with Keyway
Clutch Air Chamber Volume When New:
0.330 in³
Materials Of Construction:
Aluminum Air Chamber Black Oxide Drive Shell
Output Shaft Style:
None
