Nexen 928600 Modular Clutch / Brakes MDU-625

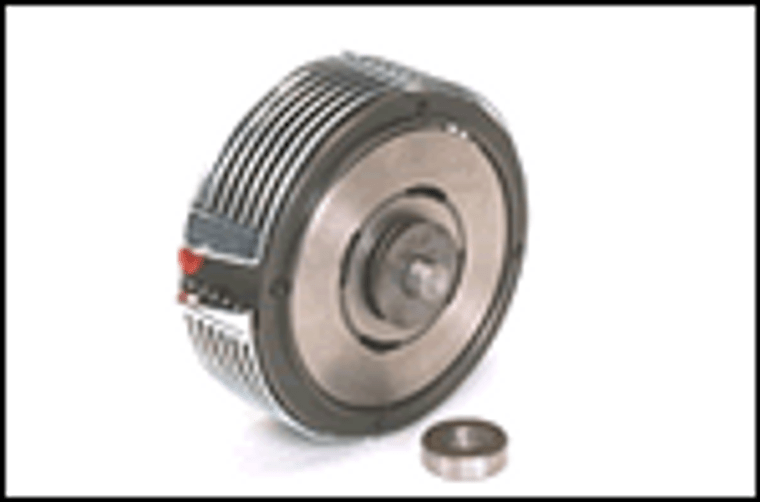

Nexen 928600 Modular Clutch/Clutch-Brake Drive Unit

Nexen
SKU:
928600
Availability:
Contact us to confirm availability and lead times.
$621.00
Condition:
New
Current Stock:
Description

Modular Clutch/Clutch-Brake Drive Unit



MDU-625

Air Engaged, NEMA C-Face Mount, Modular

Application Considerations: Modular Series Of Clutches Brakes Or Clutch/Brakes The MBU Brake Or MOU Output Unit Has The Clutch Facing That Determines The Torque And Facing Life Characteristics Of This Unit 625 and 875 Units Can Be Mixed To Get Dissimilar 56C/143TC/145TC Inputs/Outputs Drip Proof Guard In Accessories For Wet Locations But Reduces Thermal Performance

Bore Size=0.625 in

Product Features=Air Engaged, NEMA C-Face Mount, Modular
Additional Information
Weight:
11.66 lbs
Max Speed:
1800 RPM
Drive Inertia:
7.81 lbin²
Open Or Enclosed Design:
Open
Primary Finish:
Black Oxide
CE Certified:
CE
RoHS Compliant:
RoHS
Input Frame Size:
NEMA 56C
Bore Details:
Straight Bore/Shaft
Max Clutch Continuous Thermal Dissipation:
0.44 hp
Inlet Size:
0.125 NPT
Clutch Air Chamber Volume When New:
1.493 in³
Clutch Air Chamber Volume When Worn Out:
2.145 in³
Materials Of Construction:
Black Oxide
