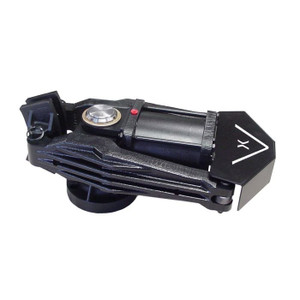

Nexen 933706 Spring Engaged Caliper Brake
NexenSpring Engaged Caliper Brake
BD*BRAKE,SPR/HYD ACTUATE,RIGHT,.50 DISC,SPCL
Spring Engaged, Hydraulic Released, Foot Mount
Configuration Notes: Same as 933701 Except Actuator Is On The Right Side Application Considerations: Spring Actuated/Hydraulic Released, Foot Mounted Facing Type In BD Caliper Model Description Is One Type/Coefficient Lower Than Actual Brake Torque = Working Radius X Torque Factor
Disc Thickness=0.500 in; Disc Working Radius=WR=D/2-1.437 For 12 in Or Larger Discs
Product Features=Spring Engaged, Hydraulic Released, Foot Mount; Restrictions=Consult Nexen For Use In Cyclic Applications; Braking Capability=Cyclic Dynamic, E-Stop, Holding
- Weight:
- 61.7 lbs
- Engagement Method:
- Spring
- Release Method:
- Hydraulic
- Open Or Enclosed Design:
- Open
- Primary Finish:
- E-Coated
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Brake Torque:
- 4648 inlb, With A 24 in Disc
- Brake Torque:
- 4648 inlb, With A 24 in Disc
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 2447 hphr
- Brake Facing Effective Area:
- 31.0 in²
- Brake Peak Thermal Input Rate:
- 77.00 hp
- Static Torque Factor Burnished:
- 440 lbf, @ 0 psi
- Static Torque Factor Unburnished:
- 303 lbf, @ 0 psi
- Dynamic Torque Factor Burnished:
- 400 lbf, @ 0 psi
- Dynamic Torque Factor Unburnished:
- 286 lbf, @ 0 psi
- Max Allowable Pressure:
- 1500 psi
- Max Operating Pressure:
- 1500 psi
- Min Release Pressure:
- 50 psi
- Inlet Size:
- 0.375 NPT
- Materials Of Construction:
- E-Coated
