Nexen 936100 Modular Clutch / Brakes MDU1375

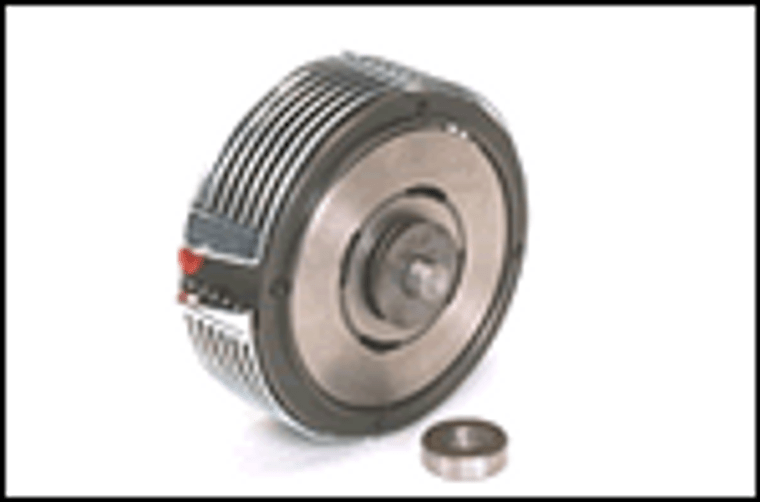

Nexen 936100 Modular Clutch/Clutch-Brake Drive Unit

Nexen
SKU:
936100
Availability:
Contact us to confirm availability and lead times.
$1,310.00
Condition:
New
Current Stock:
Description

Modular Clutch/Clutch-Brake Drive Unit



MDU1375

Air Engaged, NEMA C-Face Mount, Modular

Application Considerations: Modular Series Of Clutches Brakes Or Clutch/Brakes The MBU Brake Or MOU Output Unit Has The Clutch Facing That Determines The Torque And Facing Life Characteristics Of This Unit 1125 and 1375 Units Can Be Mixed To Get Dissimilar 182TC/184TC/213TC/215TC Inputs/Outputs Drip Proof Guard In Accessories For Wet Locations But Reduces Thermal Performance

Bore Size=1.375 in

Product Features=Air Engaged, NEMA C-Face Mount, Modular
Additional Information
Weight:
30.8 lbs
Max Speed:
1800 RPM
Drive Inertia:
59.4 lbin²
Open Or Enclosed Design:
Open
Primary Finish:
Black Oxide
CE Certified:
CE
RoHS Compliant:
RoHS
Input Frame Size:
NEMA 213T/TC, 215T/TC
Bore Details:
Straight Bore/Shaft
Max Clutch Continuous Thermal Dissipation:
0.77 hp
Inlet Size:
0.125 NPT
Clutch Air Chamber Volume When New:
3.109 in³
Clutch Air Chamber Volume When Worn Out:
4.657 in³
Materials Of Construction:
Black Oxide
