Nexen 936500 Modular Motor/Foot Mount Clutch-Brake

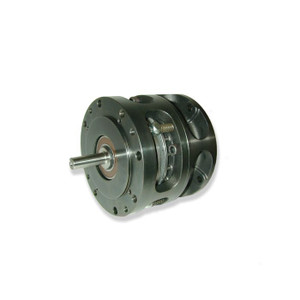

NexenModular Motor/Foot Mount Clutch-Brake
MDB-1375
Air Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing, Modular
Application Considerations: More Commonly Sold As Separate Components Which May Have Better Lead Times See Accessories For Optional Input Shaft Unit And Feet Available For Reducer Or Foot Mounted Applications, Product Number 936800 Includes The Input Shaft Unit, Product Number 931800 Includes The Input Shaft Unit And Feet This Product Can Be Made Drip Proof With The Guard Listed Under Accessories
Bore Size=Machined Bore with Keyway; Input Bore Diameter=1.375 in; Input Bore Max Shaft Insertion=2.68 in; Input Keyway=0.314W x 0.314H x 2.25L in; Output Shaft Diameter=1.375 in; Output Bore Diameter=1.375 in; Output Shaft Length=3.09 in; Output Keyway=0.314W x 0.314H x 2.25L in; Input Bolt Circle Diameter=7.250 in; Input Bolt Hole Size=0.53 in, 4 @ 90°; Input Pilot Diameter=8.50 in; Input Pilot Depth=0.21 in; Output Pilot Diameter=8.50 in; Output Pilot Height=0.25 in; Output Bolt Circle=8.5 in, 4 @ 90°; Output Bolt Hole Size=0.53 in
Product Features=Air Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing, Modular
- Weight:
- 75.5 lbs
- Mounting Style:
- Foot, Motor or Reducer
- Anti Rotation Style:
- Flange, Optional Feet
- Max Speed:
- 1800 RPM
- Overhung Load Capacity:
- 610 lbs, At 1800 RPM/700 lbs At 1200 RPM, 1 in From Pilot Face, For 10,000 Hrs Bearing Life
- Drive Inertia:
- 59.4 lbin²
- Shaft Inertia:
- 65 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Input Frame Size:
- NEMA 213T/TC, 215T/TC
- Output Frame Size:
- NEMA 213T/TC, 215T/TC
- Bore Details:
- Straight Bore/Shaft
- Input Shaft Securement:
- N/A
- Max Static Clutch Torque:
- 1140 inlb
- Max Static Brake Torque:
- 1570 inlb
- Brake Torque:
- 1570 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 1225 hphr
- Clutch Facing Effective Area:
- 30.63 in²
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 1225 hphr
- Brake Facing Effective Area:
- 30.6 in²
- Combined Continuous Thermal Dissipation:
- 0.75 hp
- Clutch Heat Sink Capacity:
- 110000 ftlb
- Brake Heat Sink Capacity:
- 125000 ftlb
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 5 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway
- Brake Air Chamber Volume When New:
- 1.600 in³
- Brake Air Chamber Volume When Worn Out:
- 3.781 in³
- Clutch Air Chamber Volume When New:
- 0.413 in³
- Clutch Air Chamber Volume When Worn Out:
- 1.895 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- Shaft with Keyway
- Clutch Side Engagement Method:
- Air
- Brake Side Engagement Method:
- Air
