Nexen 940011 3-Way Air Control Solenoid Valve Kit

Nexen 940011 3-Way Air Control Solenoid Valve Kit

Nexen
SKU:
940011
Availability:
Contact us to confirm availability and lead times.
$521.00
Condition:
New
Current Stock:
Description

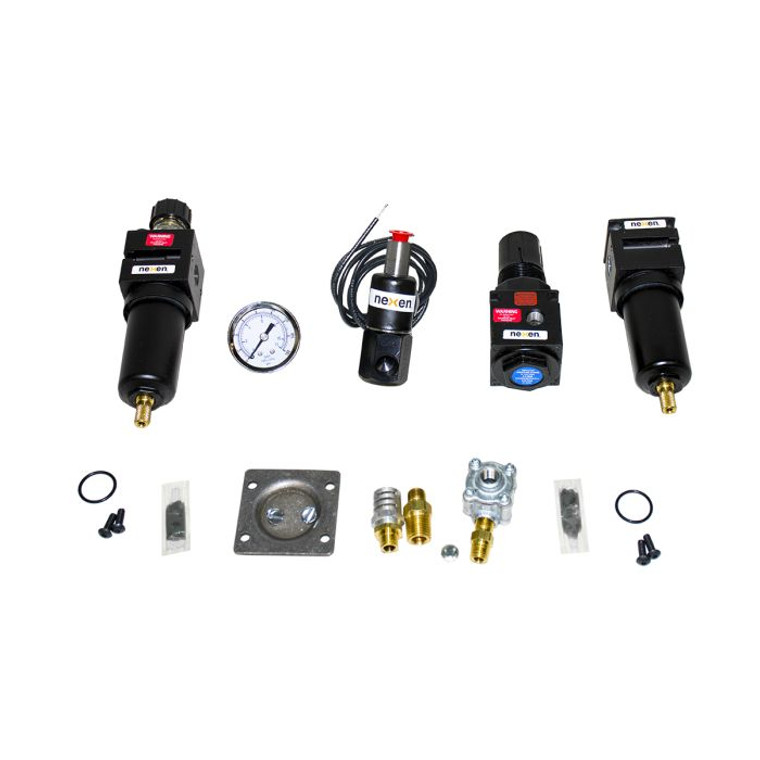

3-Way Air Control Solenoid Valve Kit



CONTROL KIT*3-WAY,NO,.125 NPT

3-Way

Configuration Notes: For Spring Engaged Brakes A Normally Closed Valve Is Usually Chosen Based Stopping When Power Is Lost Application Considerations: Includes Filter, Regulator, Lubricator, Pressure Gauge, Quick Exhaust Valve With Muffler, And 3 Way Normally Open Control Valve Other Control Coil Options In Accessories

Length=7.00 in

Product Features=3-Way
Additional Information
Weight:
5.2 lbs
Mounting Style:
In Line
Engagement Method:
Electric
Release Method:
Spring
CE Certified:
CE
RoHS Compliant:
RoHS
Valve Default Mode:
Normally Open
Cv Factor:
0.055
Operating Range:
0-100 psi
Inlet Size:
0.125 NPT
Input Power:
120 VAC 50/60 Hz, At 6 Watts
Product Type:
3-Way Air Control Solenoid Valve Kit
