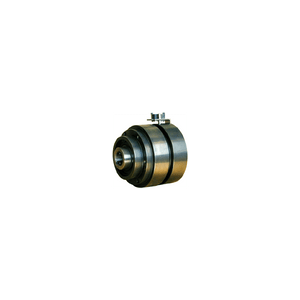

Nexen 951299 Air Engaged Torque Limiter
NexenAir Engaged Torque Limiter
TL30A*30MM BORE,AIR,METRIC,REV LIMIT,SPCL
Air Engaged, Shaft Mount, Straight Bore, Single Position
Configuration Notes: Special With Mechanical Limit Switch And A 1.8 M Cable Application Considerations: Now Improved With Turck Proximity Sensor (Click User Manual In Left Column For Installation Details) Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure Nexen Does Not Offer Couplings For Metric TL's, See Inch TL's With A Metric Bore
Bore Size=30 mm, Machined Bore with Keyway
Product Features=Air Engaged, Shaft Mount, Straight Bore, Single Position; Restrictions=Consult Nexen For Engagement at Differential Speeds
- Weight:
- 18 lbs
- Output Type:
- Pilot
- Min Sprocket Size:
- 35/42T, 40/32T, 50/26T, 60/22T, 80/18T
- Engagement Method:
- Air
- Release Method:
- Spring
- Number Of Engagement Positions:
- 1, @ 360°
- Max Speed:
- 1650 RPM
- Drive Inertia:
- 91.86 kgcm²
- Shaft Inertia:
- 29.09 kgcm²
- Backlash:
- 0.35 °
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 0 °C
- Max Ambient Temperature:
- 66 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Operating Pressure:
- 6.0 bar
- Min Engagement Pressure:
- 1.0 bar
- Inlet Size:
- 0.125 NPT
- Hose Length:
- 209.5 mm
- Cable Length:
- 1.8 m
- Housing Type:
- Open
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 22.778 cm³
- Materials Of Construction:
- Bare Machined Aluminum Air Chamber Black Oxide Pilot
- Sensor Function:
- Disengagement
- Sensor 1 Function:
- Disengagement
- Sensor 1 Output:
- SPDT 1NO/1NC
- Sensor 1 Type:
- Mechanical Contact Switch
- Min Disengagement Torque:
- 58 Nm
- Max Disengagement Torque:
- 260 Nm
