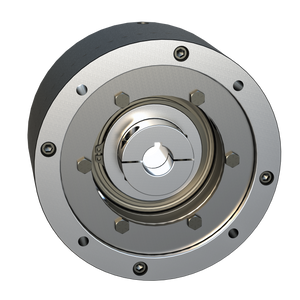

Nexen 964086 Spring Engaged Flange Mount Brake
NexenSpring Engaged Flange Mount Brake
QFB-2500*BRAKE*3.500
Spring Engaged, Shaft Mount, Straight Bore
The Hub For This Product Is Provided Loose For Machining, Consult Nexen For Recommended Specifications Nexen Can Provide Hubs Bored To Size For An Additional Charge
Length=11.95 in; Outer Diameter=30.00 in; Bore Size=3.500 in, Blank Bore can be finished up to 6.500 in
Product Features=Spring Engaged, Shaft Mount, Straight Bore; Restrictions=Not Designed For Vertical Mounting, Consult Nexen For Use In Cyclic Applications; Braking Capability=Cyclic Dynamic, E-Stop, Holding
- Weight:
- 848 lbs
- Mounting Style:
- Flange
- Anti Rotation Style:
- Flange
- Engagement Method:
- Spring
- Release Method:
- Air
- Max Speed:
- 1000 RPM
- Shaft Inertia:
- 139.3 lbft²
- Backlash:
- 0.21 °
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Unfinished Pilot Bore
- Max Static Brake Torque:
- 115400 inlb
- Brake Torque:
- 115400 inlb
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 34075 hphr
- Brake Facing Effective Area:
- 808.0 in²
- Max Brake Continuous Thermal Dissipation:
- 14.70 hp
- Brake Heat Sink Capacity:
- 2920000 ftlb
- Brake Peak Thermal Input Rate:
- 727.00 hp
- Max Allowable Pressure:
- 120 psi
- Min Release Pressure:
- 66 psi
- Inlet Size:
- 0.500 NPT
- Bore Style:
- Unfinished Blank Bore
- Brake Air Chamber Volume When New:
- 125.900 in³
- Brake Air Chamber Volume When Worn Out:
- 33.000 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
- QN-QUOTE-REQUEST:
- true
