Nexen 964417 Air Engaged Clutch-Brake Torque Limiter

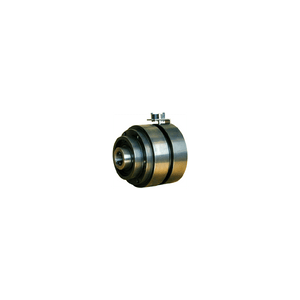

NexenAir Engaged Clutch-Brake Torque Limiter
FMCBES-1125*1.125,OPS
Spring Engaged Brake, Air Engaged Clutch, NEMA C-Face, Flange Mount, Enclosed, With Overload Sensors
Configuration Notes: This Product Is No Longer Available And Has No Direct Replacement, Contact Nexen Application Considerations: Unlike Most Torque Limiters The FMCBES OPS Can Engage At Differential Speeds And Hold The Load When Tripped See Accessories For Optional Input Shafts And Feet For Foot Mounted Applications Nexen OPS Controller Required (Not Included) Or Interface With PLC
Input Shaft Diameter=1.125 in; Bore Size=Machined Bore with Keyway; Output Shaft Diameter=1.125 in; Output Bore Diameter=1.125 in
Product Features=Spring Engaged Brake, Air Engaged Clutch, NEMA C-Face, Flange Mount, Enclosed, With Overload Sensors; Restrictions=Consult Nexen For Use In Cyclic Applications
- Weight:
- 68 lbs
- Output Type:
- Output Shaft
- Mounting Style:
- Foot, Motor or Reducer
- Anti Rotation Style:
- Flange, Optional Feet
- Engagement Method:
- Air
- Release Method:
- Spring
- Number Of Engagement Positions:
- Unlimited
- Max Speed:
- 1800 RPM
- Overhung Load Capacity:
- 240 lbs
- Drive Inertia:
- 24.2 lbin²
- Shaft Inertia:
- 30.30 lbin²
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight Bore/Shaft
- Max Static Brake Torque:
- 355 inlb
- Brake Torque:
- 355 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 929 hphr
- Clutch Facing Effective Area:
- 23.45 in²
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 929 hphr
- Brake Facing Effective Area:
- 23.5 in²
- Combined Continuous Thermal Dissipation:
- 0.33 hp
- Clutch Heat Sink Capacity:
- 14100 ftlb
- Brake Heat Sink Capacity:
- 14100 ftlb
- Clutch Peak Thermal Input Rate:
- 21.00 hp
- Brake Peak Thermal Input Rate:
- 21.00 hp
- Cv Factor:
- 0.120
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 50 psi
- Min Release Pressure:
- 29 psi
- Inlet Size:
- 0.125-27 NPTM
- Housing Type:
- Enclosed
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 2.610 in³
- Clutch Air Chamber Volume When Worn Out:
- 3.738 in³
- Materials Of Construction:
- Black Oxide
- Max Disengagement Torque:
- 390 inlb
