Nexen 964752 Spring Engaged Servomotor Brake
NexenSpring Engaged Servomotor Brake
SAFE-SBP3-16.0-040-080-07-100-16.0-NO-STD,EDW

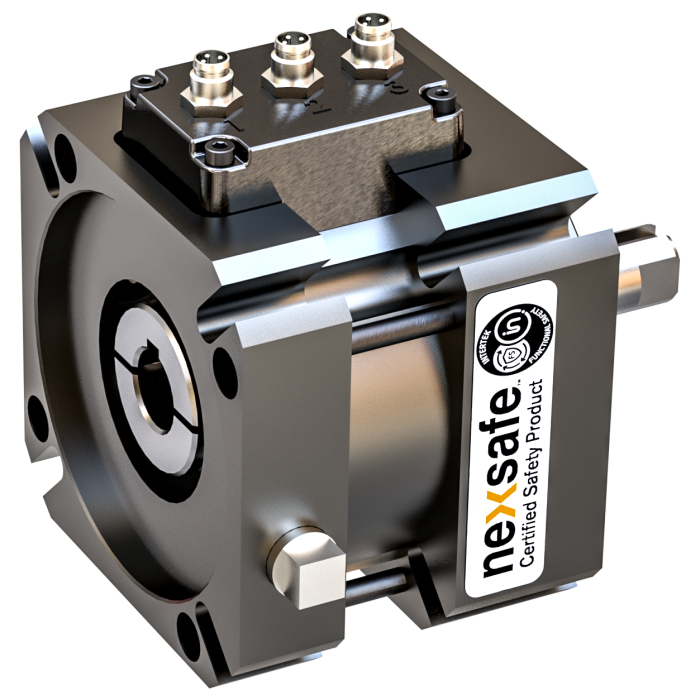

Safety Rated, Spring Engaged, Zero Backlash, Flange Mount, Integral Keyed Input Clamp Collar, Sensor
Configuration Notes: NexSafe Safety Rated Unit With Engagement, Disengagement, And Wear Sensors Includes Quick Exhaust Valve For Improved Engagement Response Order Control Valve From Accessories To The Left
Body Length=78.7 mm; Bore Size=Machined Bore with Clamp Collar and Keyway; Input Bore Diameter=16 mm; Input Bore Max Shaft Insertion=46.0 mm; Input Keyway=5W x 5H x 40L mm; Output Shaft Diameter=16 mm; Output Shaft Length=40 mm; Output Keyway=5 x 5 x 25 mm; Input Pilot Diameter=80 mm; Input Pilot Depth=5 mm; Output Pilot Diameter=80 mm; Output Pilot Height=3.0 mm; Min Output Bolt Circle Diameter=100 mm; Max Output Bolt Circle Diameter=109 mm
Product Features=Safety Rated, Spring Engaged, Zero Backlash, Flange Mount, Integral Keyed Input Clamp Collar, Sensor; Restrictions=Not Recommended For Cyclic Dynamic Braking; Braking Capability=E-Stop, Holding
- Weight:
- 4.4 lbs
- Mounting Style:
- Motor or Reducer
- Anti Rotation Style:
- Flange
- Engagement Method:
- Spring
- Release Method:
- Air
- Max Speed:
- 10000 RPM
- Shaft Inertia:
- 0.00005 kgm²
- Torsional Rigidity:
- 4500 Nm/Rad
- Backlash:
- 0 ArcSec
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Anodized
- Static b10/b10d Cycle Life:
- 1000000/2000000
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Input Frame Size:
- N/A
- Output Frame Size:
- N/A
- Bore Details:
- Straight Bore/Shaft
- Input Shaft Securement:
- Integrated Clamp Collar
- Output Shaft Features:
- 2 Flats @ 180°
- Min Static Brake Torque:
- 7.9 Nm
- Approximate Engagement Response Time:
- 12 ms
- Approximate Release Response Time:
- 75 ms
- Max Allowable Pressure:
- 8.3 bar
- Min Release Pressure:
- 5.5 bar
- Air Chamber Volume:
- 9.200 cm³
- Inlet Size:
- 0.125 NPT
- Input Power:
- 10-30 VDC, < 100 mA
- Sensor Connector:
- M8 3 Pin
- Number of Sensors:
- 3
- Sensor Location:
- Side Opposite Air Inlet
- Safety Rating:
- NexSafe Certified
- Bore Style:
- Machined Bore with Clamp Collar and Keyway
- Materials Of Construction:
- Black Anodized
- Output Shaft Style:
- Shaft with Keyway
- Sensor Function:
- Disengagement, Engagement, Facing Wear
- Sensor 1 Function:
- Engagement, Integral, factory set
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Inductive Proximity
- Sensor 3 Function:
- Facing Wear, Integral, factory set
- Sensor 3 Output:
- Normally Open PNP
- Sensor 3 Type:
- Inductive Proximity
- Sensor 2 Function:
- Disengagement, Integral, factory set
- Sensor 2 Output:
- Normally Open PNP
- Sensor 2 Type:
- Inductive Proximity
- Backlash Rating:
- Zero Backlash
