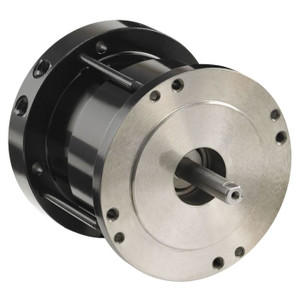

Nexen 965310 Spring Engaged Motor/Foot Mount Brake
NexenSpring Engaged Motor/Foot Mount Brake
EMB-1375 MOTOR BRAKE 213/215
Spring Engaged, NEMA C-Face Mount
Application Considerations: Recommended For Cyclic Braking, Holding, And E-Stop Applications
Bore Size=Machined Bore with Keyway; Input Bore Diameter=1.375 in; Input Bore Max Shaft Insertion=3.39 in; Input Keyway=0.314 x 0.314 x 3.05L in; Output Shaft Diameter=1.375 in; Output Bore Diameter=1.375 in; Output Shaft Length=3.12 in; Output Keyway=0.314 x 0.314 x 2.41L in; Input Bolt Circle Diameter=7.250 in; Input Bolt Hole Size=0.531 in; Input Pilot Diameter=8.501 in; Input Pilot Depth=0.290 in; Output Pilot Diameter=8.500 in; Output Pilot Height=0.250 in; Output Bolt Circle=7.25 in; Output Bolt Hole Size=0.500-13 in, 4 @ 90°
Product Features=Spring Engaged, NEMA C-Face Mount; Braking Capability=E-Stop, Holding
- Weight:
- 42.38 lbs
- Mounting Style:
- Foot, Motor or Reducer
- Anti Rotation Style:
- Flange, Optional Feet
- Engagement Method:
- Spring
- Release Method:
- Air
- Max Speed:
- 5000 RPM
- Overhung Load Capacity:
- N/A, Ask Nexen
- Shaft Inertia:
- 11.57 lbin²
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Acrylic Paint
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Input Frame Size:
- NEMA 213T/TC, 215T/TC
- Output Frame Size:
- NEMA 213T/TC, 215T/TC
- Bore Details:
- Straight Bore/Shaft
- Input Shaft Securement:
- 1 Set Screw
- Min Static Brake Torque:
- 876 inlb
- Approximate Brake Facing Life:
- 55 hphr
- Brake Facing Effective Area:
- 11.2 in²
- Max Brake Continuous Thermal Dissipation:
- 0.30 hp
- Brake Heat Sink Capacity:
- 69630 ftlb
- Brake Peak Thermal Input Rate:
- 10.00 hp
- Approximate Engagement Response Time:
- 30 ms
- Max Allowable Pressure:
- 120 psi
- Min Release Pressure:
- 64 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway
- Brake Air Chamber Volume When New:
- 0.983 in³
- Brake Air Chamber Volume When Worn Out:
- 0.062 in³
- Materials Of Construction:
- Black Acrylic Paint
- Output Shaft Style:
- Shaft with Keyway
