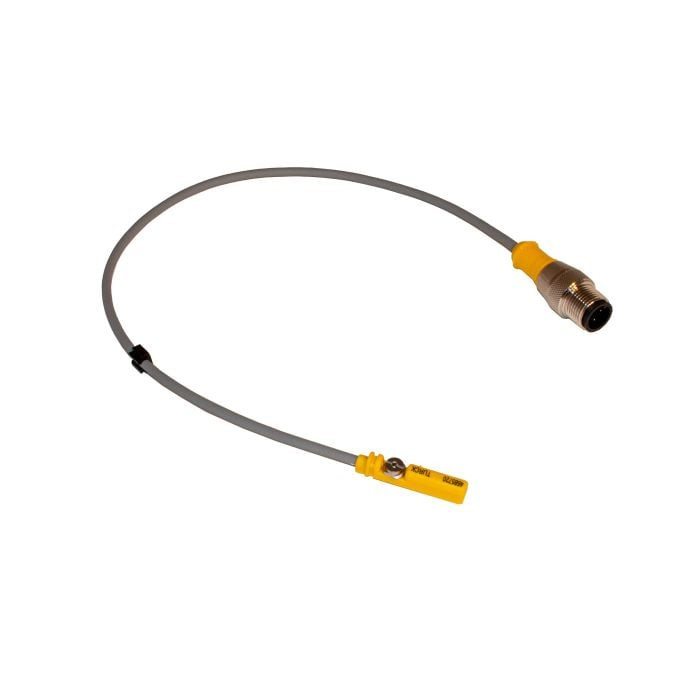

Nexen 966240 T-Slot Proximity Sensor

Nexen 966240 T-Slot Proximity Sensor

Nexen
SKU:
966240
Availability:
Contact us to confirm availability and lead times.
$290.00
Condition:
New
Current Stock:
Description

T-Slot Proximity Sensor



SENSOR,PROXIMITY,PNP,M12,.3 METER

Magnetic, Connector, Integral LED

Configuration Notes: T Slot Proximity Sensor For Rod Locks To Provide Locking Mode Feedback Application Considerations: Easy Installation, LED Indicates State Can Be Tied Into Control Systems To Ensure Locked Or Unlocked Status Senses Rod Lock Actuating Piston Location M12 x 1 Male Connector

Length=31.0 mm

Product Features=Magnetic, Connector, Integral LED; Restrictions=Does Not Guarantee Rod Lock Holding If Rod Lock Or Rod Are Damaged
Additional Information
Weight:
0.1 lbs
Mounting Style:
T Slot With Locking Screw
Min Ambient Temperature:
-25 °C
Max Ambient Temperature:
70 °C
CE Certified:
CE
RoHS Compliant:
RoHS
IEC IP Rating:
IP67
Cable Length:
0.3 m
Input Power:
10-30 VDC
Sensor Connector:
M12 x 1.0
Number of Sensors:
1
Sensor Function:
Disengagement, Engagement, Engagement or Disengagement
Sensor 1 Function:
Engagement or Disengagement, Depends on user installation
Sensor 1 Output:
Normally Open PNP
Sensor 1 Type:
Magneto-Resistive
