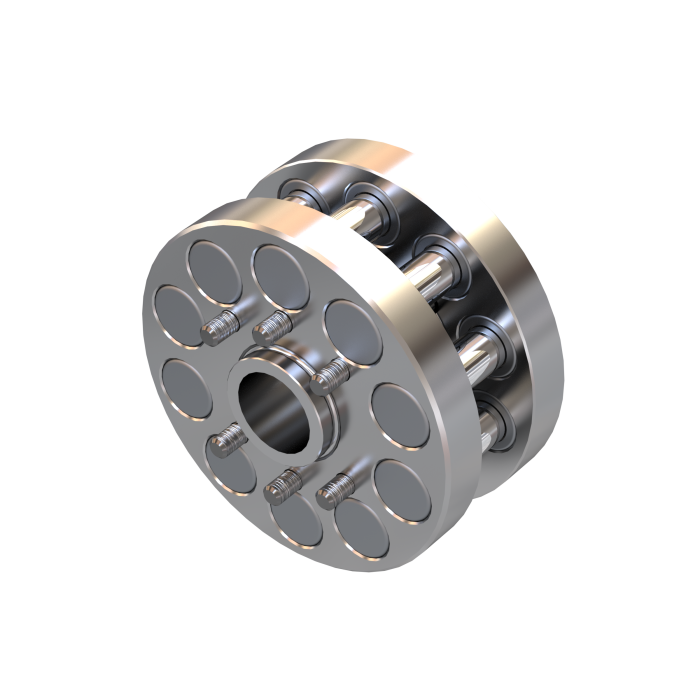

Nexen 966481 Flange Mount Roller Pinion
NexenFlange Mount Roller Pinion
RPS10P-BISO015.00MMP3
High Precision, Zero Backlash, Flange Mount
Configuration Notes: Special Fit For A Custom Gearhead Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination
Length=29.0 mm; Body Length=29.0 mm; Outer Diameter=41.0 mm; Distance Per Revolution=100 mm; Meshing Pitch Circle Diameter=31.8 mm
Product Features=High Precision, Zero Backlash, Flange Mount
- Weight:
- 0.65 lbs
- Max Speed:
- 2400 RPM
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Dynamic Torque:
- 4.0 Nm
- Max Static Torque:
- 6.0 Nm
- Max Dynamic Torque At Min Life:
- 4.0 Nm
- Max Dynamic Torque For Max Life:
- 4.0 Nm
- Max Acceleration Thrust:
- 250 N
- Max Average Thrust:
- 250 N
- Max Static Linear Force:
- 380 N
- Rotational Inertia:
- 0.00004 kgm²
- Approximate Life:
- 60000000, Contacts Per Roller Or Full Revolutions At Max Life Rated Performance, See Tech Data Sheet For Full Info
- Materials Of Construction:
- Nickel Plated Steel Body Stainless Steel Fasteners Bare Steel Rollers And Bearing Cups
- Max Linear Speed:
- 4 m/s
- Pinion Mounting Style:
- ISO-9409 Flange Mount
- RPS Size:
- 10
- RPS Width:
- B-Width, Only Compatible with B-Width Racks or Gears
- Backlash Rating:
- Zero Backlash
