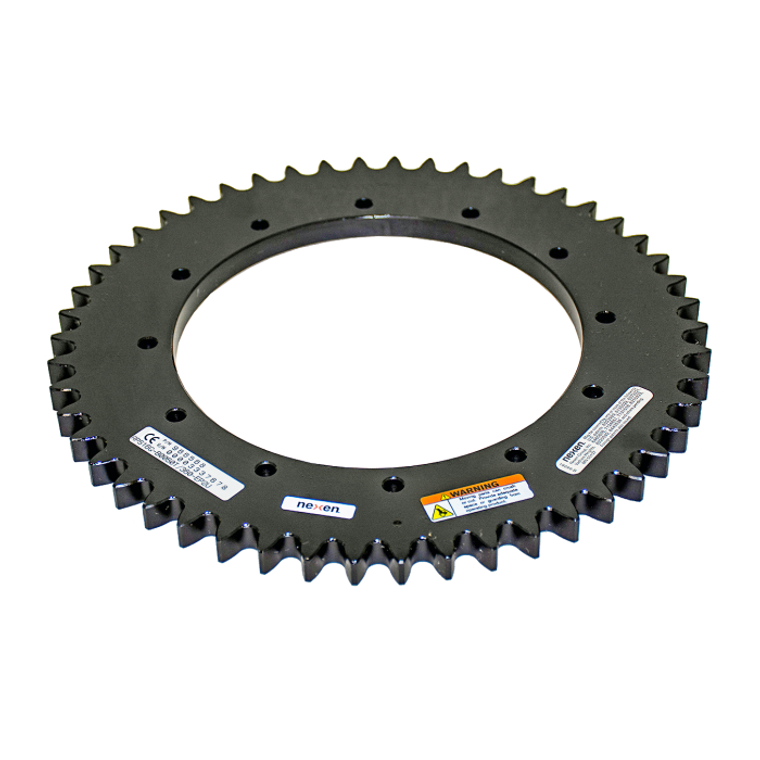

Nexen 966566 Roller Pinion Gear
NexenRoller Pinion Gear
RPS16G-B0030T/360-EP2U
High Precision, Zero Backlash, Full Ring Gear, External Tooth, Lube Free Operation Possible
Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination Includes RPG Gear, See Pinion Options Under Accessories
Length=7.00 in; Outer Diameter=161 mm; Inner Diameter=70 mm; Ring Gear Mounting Flange Thickness=11.5 mm
Product Features=High Precision, Zero Backlash, Full Ring Gear, External Tooth, Lube Free Operation Possible; Restrictions=This Gear Can Run Without Lubrication At Speeds Below 62.5 RPM With Some Potential Life Reduction
- Weight:
- 3.55 lbs
- Primary Finish:
- Dense Hard Chrome
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Torque:
- 183.3 Nm
- Max Dynamic Torque At Min Life:
- 183.3 Nm
- Max Dynamic Torque For Max Life:
- 101.1 Nm
- Product Weight:
- 1.2 kg
- One Way Repeatability:
- ± 14.0 ArcSec
- Angular Backlash:
- 0 ArcSec
- Max Output Speed:
- 500 RPM
- Rotational Inertia:
- 0.004 kgm²
- Tooth Orientation:
- External Teeth
- Approximate Life:
- More Than 30000000, Roller Contacts Per Tooth At Rated Accuracy And Max Life Ratings
- Gear To Pinion Ratio:
- 3 :1
- Gear Or Segment Angle:
- 360 °
- Materials Of Construction:
- Black Thin Dense Hard Chrome On Steel
- One Way Positional Accuracy:
- ± 84.2 ArcSec
- RPS Size:
- 16
- RPS Width:
- B-Width, Only Compatible with B-Width Roller Pinions
- Backlash Rating:
- Zero Backlash
