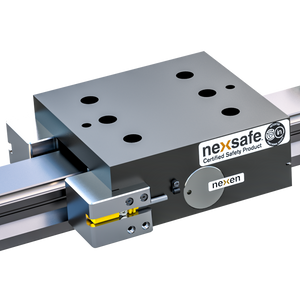

Nexen 968265 Spring Engaged Profile Rail Brake
NexenSpring Engaged Profile Rail Brake
SAFE-RB25B-S/P-S-THK-HSR-PNP2-B
Safety Rated, Spring Engaged, Air Released
Configuration Notes: NexSafe Rated With Dual Sensors And M8 Sensor Connector Application Considerations: High Holding Force, Low Backlash, Zero Maintenance, NexSafe Certified Safety Product Can Be Used For Infrequent Emergency Stops For Other Guide Rail Manufacturers Or Guide Rail Series Contact Nexen
Length=99.2 mm
Product Features=Safety Rated, Spring Engaged, Air Released; Restrictions=Suitable For Infrequent E-Stops, Not For Use In Cyclic Dynamic Braking Applications
- Weight:
- 2.55 lbs
- Engagement Method:
- Spring
- Release Method:
- Air
- Backlash:
- < 0.20 mm
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Static b10/b10d Cycle Life:
- 2000000/4000000
- Min Ambient Temperature:
- 33 °F
- Max Ambient Temperature:
- 150 °F
- Max Intermittent Ambient Temperature:
- 212 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Approximate Engagement Response Time:
- 50 ms
- Product Weight:
- 0.86 kg
- Max Operating Pressure:
- 6.9 bar
- Min Release Pressure:
- 5.5 bar
- Air Chamber Volume:
- 6.800 cm³
- Inlet Size:
- 4 mm, Plastic Tubing Fitting Screwed Into A M5 Port
- Cable Length:
- 0.3 m
- Input Power:
- 10-30 VDC
- Sensor Connector:
- M8 x 1.0 Male, 3 Pin
- Number of Sensors:
- 2
- Sensor Location:
- Both Sides
- Sensor Frequency:
- ? 1000 Hz
- Manufacturer:
- THK
- Series:
- HSR
- Size:
- 25
- Linear Holding Force:
- 1000 N
- Safety Rating:
- NexSafe Certified
- Materials Of Construction:
- Black Oxide
- Sensor Function:
- Disengagement, Engagement, Engagement or Disengagement
- Sensor 1 Function:
- Engagement or Disengagement, Depends on user installation
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Magneto-Resistive
- Sensor 2 Function:
- Engagement or Disengagement, Depends on user installation
- Sensor 2 Output:
- Normally Open PNP
- Sensor 2 Type:
- Magneto-Resistive
