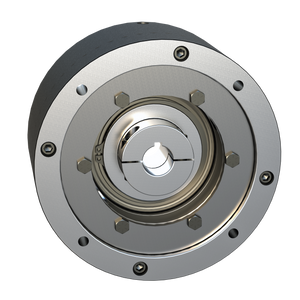

Nexen 970546 Spring Engaged Flange Mount Brake
NexenSpring Engaged Flange Mount Brake
ZSE800,2.000 BORE
Spring Engaged, Shaft/Flange Mount, Zero Backlash
ZSE-S Versions Include Disengagement, And Temperature Sensors Suitable For E-Stops Or Other Infrequent Braking Other Bore Sizes Available Upon Request
Length=3.89 in; Outer Diameter=8.00 in; Bore Size=2.000 in, Machined Bore with Clamp Collar and Keyway; Output Bolt Circle=7 in; Output Bolt Hole Size=4 0.346 in, Holes @ 90°; Max Parallel MisAlignment=0.005 in
Product Features=Spring Engaged, Shaft/Flange Mount, Zero Backlash; Restrictions=Not Recommended For Cyclic Dynamic Braking; Braking Capability=E-Stop, Holding
- Weight:
- 35.25 lbs
- Mounting Style:
- Flange
- Anti Rotation Style:
- Flange
- Engagement Method:
- Spring
- Release Method:
- Air
- Max Speed:
- 5000 RPM
- Shaft Inertia:
- 15 lbin²
- Torsional Rigidity:
- 523598 ftlb/rad
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Acrylic Paint
- Static b10/b10d Cycle Life:
- 2000000/4000000
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Input Shaft Securement:
- Integrated Clamp Collar
- Min Static Brake Torque:
- 1549 inlb
- Brake Torque:
- 1549 inlb
- Approximate Engagement Response Time:
- 108 ms
- Max Allowable Pressure:
- 120 psi
- Min Release Pressure:
- 80 psi
- Air Chamber Volume:
- 5.36 in³
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Clamp Collar and Keyway
- Materials Of Construction:
- Black Acrylic Paint
- Output Shaft Style:
- None
- Backlash Rating:
- Zero Backlash
