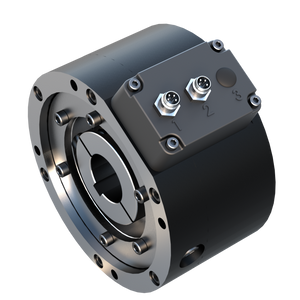

Nexen 970565 Spring Engaged Flange Mount Brake
NexenSpring Engaged Flange Mount Brake
ZSE1000,75MM BORE,METRIC,0.4 MPA RELEASE
Spring Engaged, Shaft/Flange Mount, Zero Backlash
ZSE-S Versions Include Disengagement, And Temperature Sensors Suitable For E-Stops Or Other Infrequent Braking Other Bore Sizes Available Upon Request
Length=112.2 mm; Outer Diameter=254 mm; Bore Size=75 mm, Machined Bore with Clamp Collar and Keyway; Input Keyway=20 mm; Output Bolt Circle=232 mm; Output Bolt Hole Size=4 12.8 mm, Holes @ 90°; Max Parallel MisAlignment=0.127 mm
Product Features=Spring Engaged, Shaft/Flange Mount, Zero Backlash; Restrictions=Not Recommended For Cyclic Dynamic Braking; Braking Capability=E-Stop, Holding
- Mounting Style:
- Flange
- Anti Rotation Style:
- Flange
- Engagement Method:
- Spring
- Release Method:
- Air
- Max Speed:
- 4000 RPM
- Shaft Inertia:
- 18.8 kgcm²
- Torsional Rigidity:
- 1343928 Nm/rad
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Acrylic Paint
- Static b10/b10d Cycle Life:
- 2000000/4000000
- Min Ambient Temperature:
- 0.0 °C
- Max Ambient Temperature:
- 65.6 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Input Shaft Securement:
- Integrated Clamp Collar
- Min Static Brake Torque:
- 218 Nm
- Brake Torque:
- 218 Nm
- Approximate Engagement Response Time:
- 208 ms
- Max Allowable Pressure:
- 8.3 bar
- Min Release Pressure:
- 4.0 bar
- Air Chamber Volume:
- 163.4 cm³
- Inlet Size:
- 0.250-19 BSPT
- Bore Style:
- Machined Bore with Clamp Collar and Keyway
- Materials Of Construction:
- Black Acrylic Paint
- Output Shaft Style:
- None
- Backlash Rating:
- Zero Backlash
