NOREN CC2505FHL Compact Cabinet Cooler

NOREN CC2505FHL Compact Cabinet Cooler

Noren
SKU:
CC2505FHL
Availability:
Contact us to confirm availability and lead times.
$4,765.00
Condition:
New
Current Stock:
Description

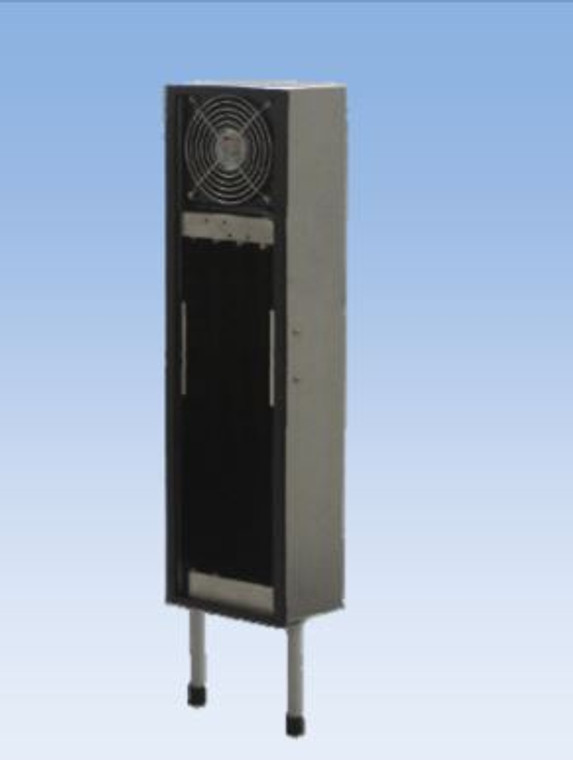

Hazardous Locations, Class 1, Division 2, Group A, B, C and D CC2066PHL-TYPE 4X, xxx, Class 1/Div 2 COMPACT CABINET COOLER (STAINLESS STEEL CORE) AIR-TO-WATER FLUSH-MOUNT MODEL



  1. UL Listed for TYPE 4X environments, Hazard Location Class 1 / Div 2
  2. CC2505 Rated cooling: 2,080 Watts at 20CT (Temp Code T4) (104.0 W/°C, mounted to an uninsulated 72” X 36” X 24” Cabinet)
  3. Designed for surface mounting on outside of purged or non-purged cabinet.
  4. Housing is Stainless Steel (TYPE 316)
  5. Equipped with mounting gasket to maintain the TYPE 4X integrity of your cabinet.
  6. Pressure tested to insure liquid tight seal.
  7. External fan is UL rated for Wet Locations / Outdoor use (WL).
  8. Internal 6-ft power cord.
  9. Available with DC and AC (12VDC, 24VDC, 48VDC, 115VAC & 230VAC). Designation xxx indicates voltage.
  10. Vertical mounting (as shown) is standard. Call for horizontal applications.
  11. Optional: inlet air-filter kit available upon request.
