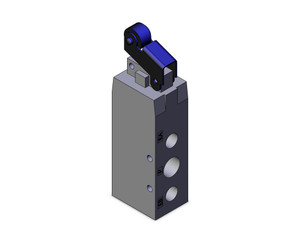

NVFM300, 5 Port Mechanical Valve, Rubber Seal, North American
Series VFM is a 5 port, compact, mechanical valve available in a rubber (VFM300) or metal (VFM200) seal style. This series has a large flow capacity (Cv 1.0) and a high cycle rate. The VFM offers an internal or external pilot body option and a variety of actuator choices.
-
- Fluid: air, inert gas- Operating pressure range: 22 to 131 PSIG
- Effective area (Cv): 18mm 2 (1.0)
- Maximum frequency (mechanical operation style):300 c.p.m. or less
- Weight (Basic): 9.2 oz.
-
- Manufacturer Part #:
- NVFM350-N02-00
- Accessories:
- None
- Style:
- Basic Style
- Suffix:
- None [Or Polyacetal (Std) in Case of Roller Material)
- Body Option:
- Internal Pilot
