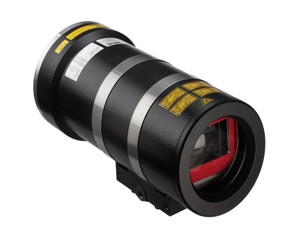

Leuze ODSL 30/V-30M Ex d Industrial Sensor System
Leuze
$11,617.00
The ODSL 30/V-30M Ex d is a precision industrial sensor engineered for demanding automation applications. Featuring IP67 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Light source: LASER, red emission
Protection rating: IP67 (dust-tight, water-resistant for washdown environments)
Supply voltage: 18...30 V DC with reverse polarity protection
Operating temperature: -10...45 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model ODSL 30/V-30M Ex d). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 30
- Type of scanning system:
- Against object
- Special version:
- Ex-protected
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 6 mm [10,000 mm]
- Measurement range (6 90 % diffuse reflection):
- 200 ... 30,000 mm
- Resolution:
- 1.0 mm
- Accuracy, short range:
- 2 %(+/-) without referencing / 1 % (+/-) with referencing (with measurement range up to 2.5 m)
- Accuracy, distant range:
- 1 %(+/-) without referencing / 1 % (+/-) with referencing (with measurement range of 5 ... 30 m)
- Reproducibility (3 sigma):
- 2 mm
- Referencing:
- Yes
- Optical distance measurement principle:
- Phase measurement
- Supply voltage UB:
- 18 ... 30 V, DC
- Open-circuit current:
- 0 mA
- Number of digital switching inputs:
- 1 Piece(s)
- Function:
- Programmable
- Number of analog outputs:
- 2 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Current
- Switching element:
- Transistor, Push-pull
- Response time:
- 30 ... 100 ms
- Type of connection:
- Cable
- Cable length:
- 15,000 mm
- Number of conductors:
- 8 -wire
- Dimension (W x H x L):
- 135 mm x 143 mm x 290 mm
- Housing material:
- Metal
- Metal housing:
- Aluminum
- Lens cover material:
- Glass
- Net weight:
- 6,500 g
- Operational controls:
- LC Display,Membrane keyboard
- Ambient temperature, operation:
- -10 ... 45 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Ex device category:
- 2D,2G
- Ex-Zone:
- 1,21
- Degree of protection:
- IP 67
- Protection class:
- II
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
