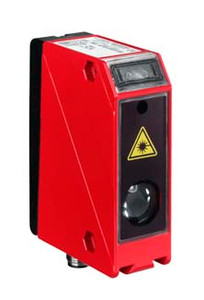

Leuze ODSL 96B M/D36-S12 Optical distance sensor
Leuze
$1,301.00
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze ODSL 96B M/D36-S12 Optical distance sensor
ODSL 96B M/D36-S12 Optical distance sensor
- Series:
- 96
- Type of scanning system:
- Against object
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 7 mm x 7 mm [10,000 mm]
- Measurement range:
- 300 ... 10,000 mm
- Resolution:
- 3.0 mm
- Accuracy:
- 0.5 %
- Reference value, accuracy:
- End value
- Repeatability:
- 5 mm
- Measurement time:
- 1.4 ... 50 ms
- Referencing:
- No
- Optical distance measurement principle:
- Time of flight
- Supply voltage UB:
- 10 ... 30 V, DC
- Number of digital switching outputs:
- 1 Piece(s)
- Switching element:
- Transistor, Push-pull
- Type:
- RS 485
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Metal
- No. of pins:
- 5 -pin
- Dimension (W x H x L):
- 30 mm x 90 mm x 70 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Lens cover material:
- Glass
- Net weight:
- 380 g
- Type of configuration:
- Software
- Operational controls:
- Membrane keyboard,PC software
- Ambient temperature, operation:
- -20 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 67,IP 69K
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
