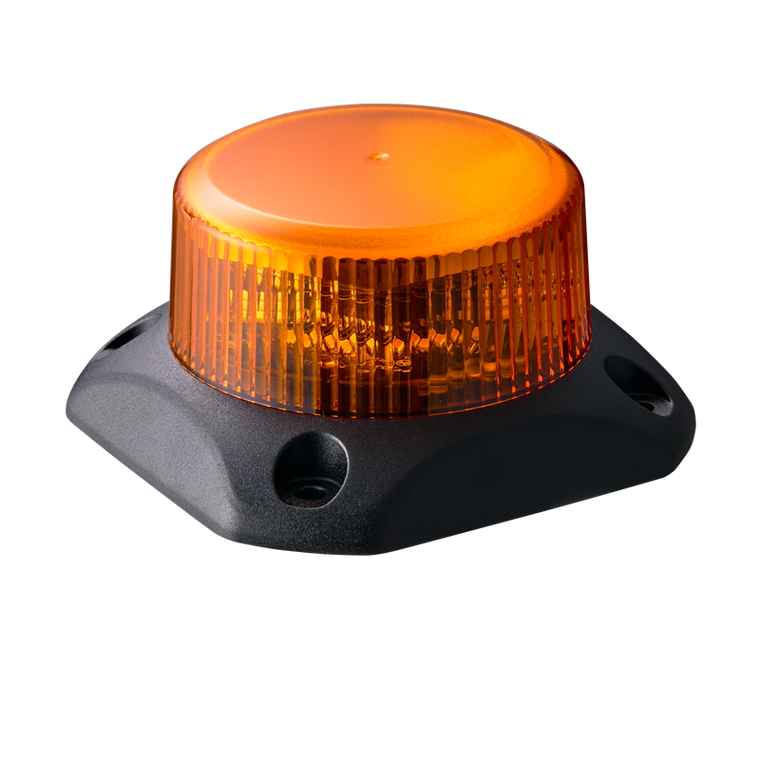

Patlite GL7-M1N-Y Flashing Beacon, 68mm, 1224V DC, Amber LED, Double-Flash Pattern, IP69K, Outdoor Rated
Patlite
$165.00
The Patlite GL7-M1N-Y is a compact amber flashing beacon engineered for outdoor and harsh-duty applications on forklifts, construction machinery, and agricultural equipment. The Ø68mm housing is rated IP69K (IP6X/IPX6 per IEC 60529, IPX9K per ISO 20653), withstanding high-pressure/high-temperature washdown and dust ingress, with vibration endurance of approximately 110 m/s² and shock tolerance to 1,000 m/s² (11 ms) across a 40°C to +85°C operating range. Controlled through a simple 1224V DC voltage input with flying wireleads, the GL7-M1N-Y provides a double-flash pattern using energy-efficient LED technology for long service life and low power draw. Its slim low-profile body fits tight installations where a conventional rotating or strobe beacon won't mount, and the four-screw footprint mounts quickly to flat surfaces. Compliant with EMC ISO 13766-1 and environmental testing per ISO 16750. Compatible with the optional GL-001 magnetic bracket for installations that must avoid drilling.
- Model Series:
- GL7
- Size:
- 68mm
