Patlite GL7T-M1N-T Low-Profile IP69K Beacon | ADI

Patlite GL7T-M1N-T Low-Profile Flashing Beacon, 68mm, 1224V DC Voltage Input, Multi-Color LED Red/Amber/Green, 3 Flash Patterns, IP69K

Patlite
SKU:
GL7T-M1N-T
Availability:
Factory stock
$224.00
Condition:
New
Current Stock:
Description

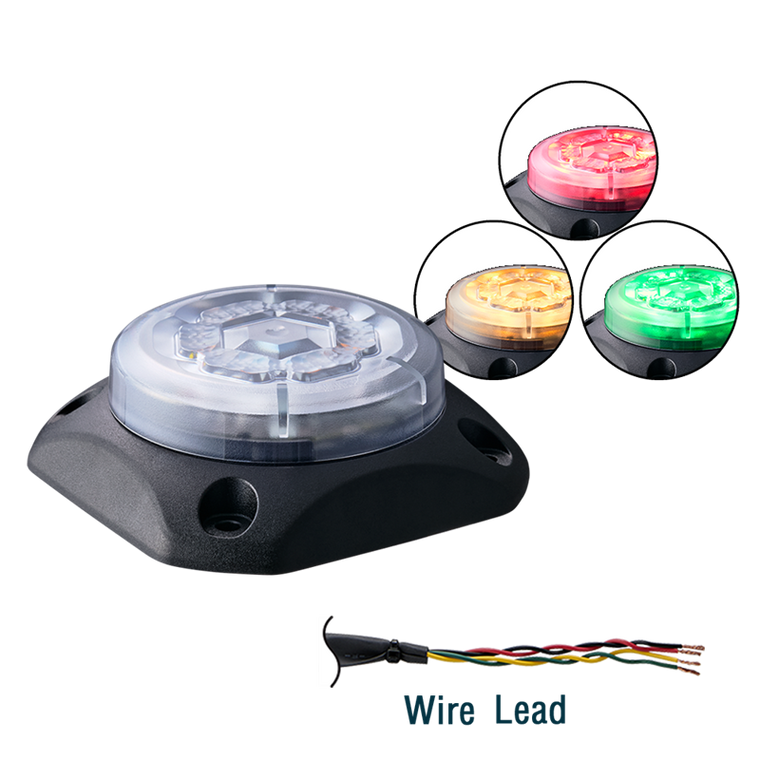

The Patlite GL7T-M1N-T is the voltage-controlled, low-profile version of the rugged GL7T beacon. Its slim housing and upward-facing lens are designed for wall-mount or near-floor installations where the operator needs clear visibility from below — common on compact construction equipment, forklifts, and in confined work cells. The IP69K rating (IP6X/IPX6 per IEC 60529, IPX9K per ISO 20653) ensures the unit survives high-pressure/high-temperature washdown and dust ingress, with vibration endurance of roughly 110 m/s² and shock tolerance to 1,000 m/s² (11 ms) over a –40°C to +85°C range. Controlled via 12–24V DC voltage input with flying wireleads, it provides three fixed flash patterns with a three-color LED (Red, Amber, Green) for clear machine-state communication. Four-screw mounting footprint with optional GL-001 magnet bracket. EMC compliant to ISO 13766-1 and tested per ISO 16750.
Additional Information
Model Series:
GL7T
Size:
68mm
