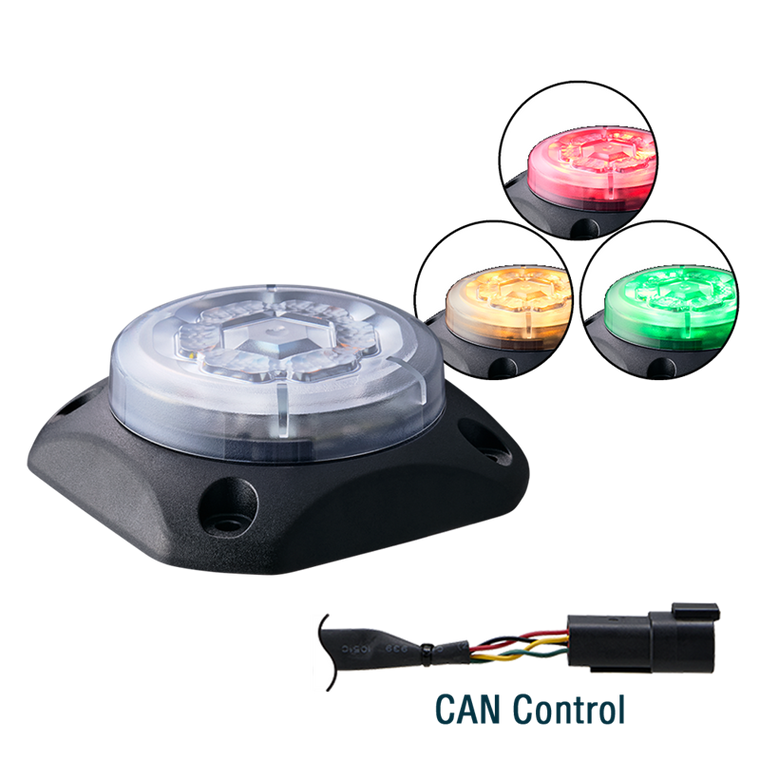

Patlite GL7T-M1NC1-T Low-Profile Flashing Beacon, 68mm, CAN Bus, 1224V DC, Multi-Color LED Red/Amber/Green, IP69K
Patlite
$256.00
The Patlite GL7T-M1NC1-T is the low-profile, upward-facing variant of the GL7 rugged flashing beacon, designed for wall-mounted or near-floor installations where overhead clearance is limited and visibility from below is critical. It retains the full IP69K environmental rating (IP6X/IPX6 per IEC 60529, IPX9K per ISO 20653), vibration endurance of approximately 110 m/s², and shock tolerance to 1,000 m/s² (11 ms) of the standard GL7, with an operating range of 40°C to +85°C. The CAN bus interface supports the SAE J1939 protocol and offers up to 13 configurable flash patterns with four brightness levels, enabling network-level control on modern construction and agricultural machinery. The three-color LED (Red, Amber, Green) delivers clear, color-vision-friendly status indication. Four-screw mounting footprint with optional GL-001 magnet bracket. Compliant with EMC ISO 13766-1 and environmental testing per ISO 16750. Ideal for compact equipment, forklifts, and any application requiring a slim profile without sacrificing protection class.
- Model Series:
- GL7T
- Size:
- 68mm
