Pfannenberg

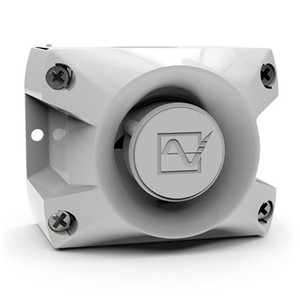

Pfannenberg Pa 1 Lv Sounder 100 Db 10-57 Vdc Gry Housing

(No reviews yet) Write a Review
SKU:
23310630055
Condition:
New
MOUNTING STYLE:
Surface or Flush
MATERIAL:
Polycarbonate/ABS blend housing
ENVIRONMENTAL PROTECTION STANDARD:
Type 4/4X, IP 66
OPERATING VOLTAGE RANGE:
10-57 VDC
Max Decible @ 1m:
105 dB
Coverage Area @ 80dB Ambient:
2,340 sq ft
Coverage Area @ 90dB Ambient:
220 sq ft
APPROVALS:
UL, cUL, CE, VdS, EN 54-23
WEIGHT (lbs):
0.7714
Width (in):
4.31
Height (in):
3.38
Depth (in):
3.17
MINIMUM OPERATING TEMPERATURE (??C):
-40
MAXIMUM OPERATING TEMPERATURE ( ??C):
55
$244.46

Description

PA 1 LV Sounder 100 dB 10-57 VDC GRY housing
105 dB (A) nominal sound pressure level
80 alarm tones with 4 stages
Emit different tones based on alarm circumstances
Internal volume control
Polycarbonate/ABS blend housing
UL Type 4/4X, IP 66 ingress
Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3
10 Year Warranty
Also available in a flush panel mount option
