Pfannenberg

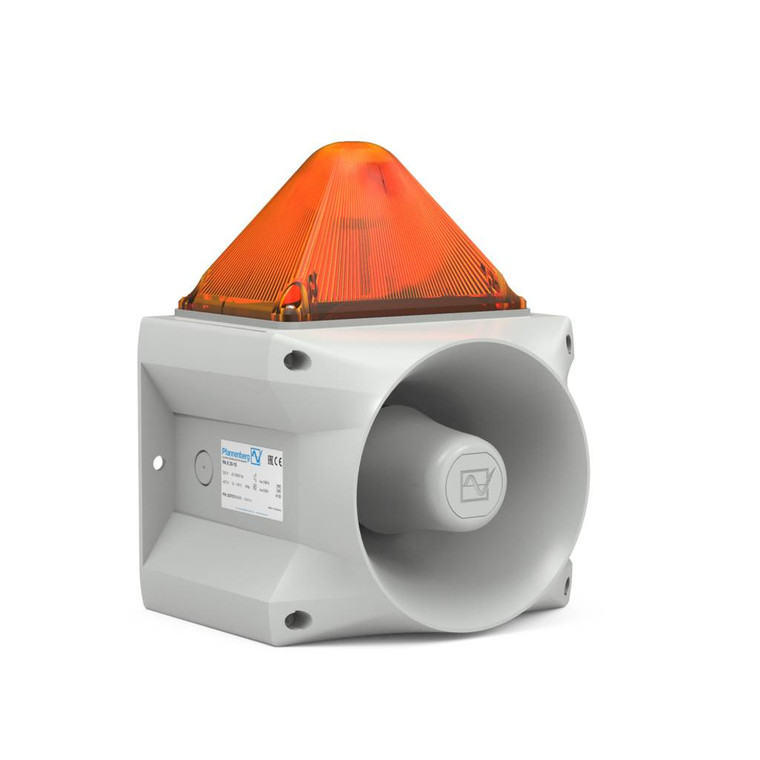

Pfannenberg Pa X 20-15 115V Combo Sound/Flash Light 15J 120 Db 90-135Vac Gry Housing Am Lens

(No reviews yet) Write a Review
SKU:
23372154055
Condition:
New
MOUNTING STYLE:
Surface Mount
BASE COLOR:
RAL 7035
LENS COLOR:
AMBER
MATERIAL:
Polycarbonate/ABS blend
ENVIRONMENTAL PROTECTION STANDARD:
IP 66 / UL Type 4/4x
OPERATING VOLTAGE RANGE:
90-135 VAC
BULB TYPE:
Xenon
FLASH ENERGY:
15 J
FLASH RATE:
130 Hz = 60 flashes/min
Max decible output @ 1m:
122 dB
Coverage Area @ 80dB Ambient:
90,000 sq ft
Coverage Area @ 90dB Ambient:
9,000 sq ft
SERVICE LIFE OF LIGHT SOURCE:
8,000,000 Flashes until 70%
APPROVALS:
UL, cUL, EAC, VDS, EN 54-3
WEIGHT (lbs):
5.2896
Width (in):
8.42
Height (in):
10.62
Depth (in):
7.12
MINIMUM OPERATING TEMPERATURE (??C):
-40
MAXIMUM OPERATING TEMPERATURE ( ??C):
55
$1,553.03

Description

PA X 20-15 115V Combo Sound/Flash Light 15J 120 dB 90-135VAC GRY housing AM lens
120 dB (A) nominal sound pressure level
1 Hz single flash xenon strobe light, 15 Joules (10 Joules optional)
80 alarm tones with 4 stages
Emit different tones based on alarm circumstances
Internal volume control
Polycarbonate/ABS blend housing
UL Type 4/4X, IP 66 ingress protection
Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3
