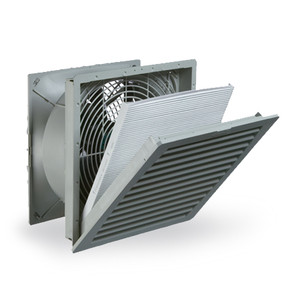

Pfannenberg Pf 65000 Emc Filterfan Thermal Management Filter Fan-Specialty
Pfannenberg
$695.00
PF 65000 Filterfans 4.0?Ö- 13 in X 13 in, Electromagnetic Compatibility, Standard Side Mount, 115 VAC, Light Grey (RAL 7035), 297 CFM, Type 12
Superior metal shielding
Does not use metalized plastics to protect environment
No time consuming scratching off of coatings for good contact
Contact is made via the cut edge of the cut-out for the Filterfans or exhaust filter
Tool-less quick install design for all NEMA enclosure wall thickness (steel, fiberglass, polycarbonate)
Available in multiple sizes and color options
Typical Applications: Electromagnetic sensitive industrial automation enclosures, Electromagnetic sensitive electrical control cabinet
- Mounting Style:
- Side Mount
- Color:
- RAL 7035 (Lt. Grey)
- Material:
- self-extinguishing, UL 94 VO injection-molded thermoplastic
- Environmental Protection Standard:
- Type 12 - fluted filter
- Voltages:
- 115 V
- Voltage Tolerance:
- +/- 10%
- Frequency:
- 60Hz
- Power Consumption (W):
- 90
- SERVICE LIFE L10 (+ 40 ??C):
- 40,000 h
- NOISE LEVEL (EN ISO 3741):
- 52 dB (A)
- CONNECTION TYPE:
- spring-type terminal
- BEARING TYPE:
- ball bearing
- APPROVALS:
- UL, cUL, CE, (on request: GOST)
- WEIGHT (lb):
- 7.56
- NOMINAL SIZE:
- 13 in
- Width (in):
- 12.6
- Height (in):
- 12.6
- Depth (in):
- 6.18
- CUT-OUT DIMENSIONS (mm):
- 292 x 292
- CUT-OUT DIMENSIONS (in):
- 11.5 x 11.5
- UNIMPEDED AIRFLOW:
- 297 CFM
- FAN AND EXHAUST AIRFLOW:
- 224 CFM
- FILTER MAT QUALITY CLASS:
- G4 Fluted Polyester
- FILTRATION EFFICIENCY:
- 0.91
