Pfannenberg

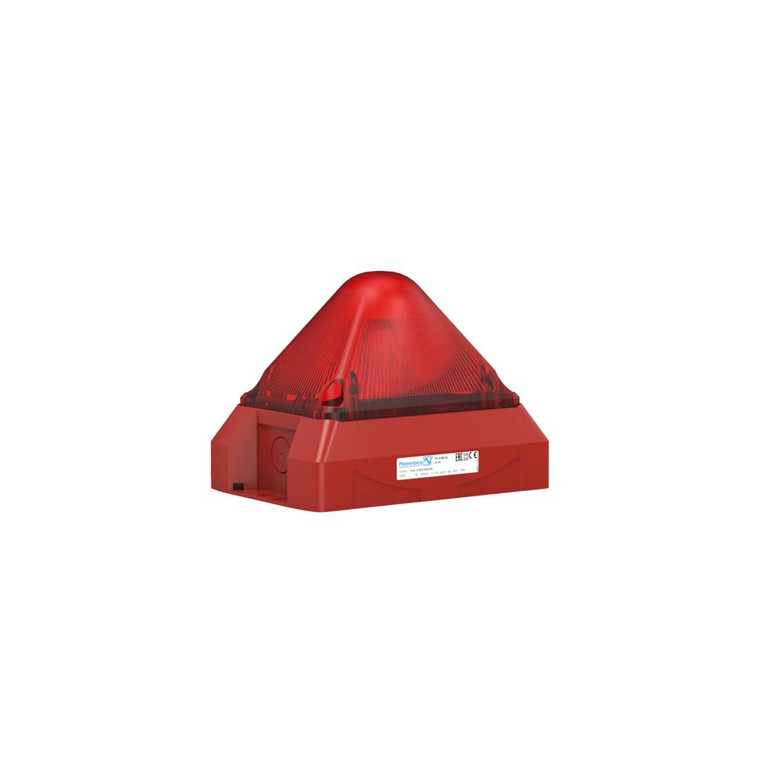

Pfannenberg Py X-M-10 115V Flashing Light 10J Adj Fl 90-135Vac, Rd Housing Rd Lens

(No reviews yet) Write a Review
SKU:
21551155000
Condition:
New
MOUNTING STYLE:
Surface or Flush
BASE COLOR:
RAL 3000 (Red)
LENS COLOR:
Red
MATERIAL:
Polycarbonate/ABS blend housing
ENVIRONMENTAL PROTECTION STANDARD:
Type 4/4X, IP 66
OPERATING VOLTAGE RANGE:
90-135 VAC
BULB TYPE:
Xenon
FLASH ENERGY:
10 J
FLASH Rate:
1 Hz = 60 flashes/min, .75 Hz = 45 flashes/min, .5 Hz = 30 flashes/min, .1 Hz = 6 flashes/min
LIGHT INTENSITY (DIN 5037):
149 cd
FLASH RATE:
Adjustable
MAX VIEWING DISTANCE:
283 m
SERVICE LIFE OF LIGHT SOURCE:
Light emission still 70% after 800,000,000 flashes
APPROVALS:
UL, cUL, CE, VdS, EN 54-23
WEIGHT (lbs):
0.96976
Width (in):
6.53
Height (in):
4.88
Depth (in):
4.48
MINIMUM OPERATING TEMPERATURE (??C):
-40
MAXIMUM OPERATING TEMPERATURE ( ??C):
55
  • Pfannenberg Py X-M-10 115V Flashing Light 10J Adj Fl 90-135Vac, Rd Housing Rd Lens
  • Pfannenberg Py X-M-10 115V Flashing Light 10J Adj Fl 90-135Vac, Rd Housing Rd Lens
$380.17

Description

PY X-M-10 115V Flashing light 10J adj fl 90-135VAC, RD housing RD lens

Exclusive Pfannenberg xenon flash technology
Reaches a 10 Joules Flash with with adjustable flash rate
Adjustable flash rate: 0.1, 0.5, 0.75, and 1.0 Hz
Automatic flash synchronization of multiple connected units
8,000,000 flash service life
180?? x 360?? visible field
Operates in any climate
Surface or flush-panel mounted
10-Year Warranty
