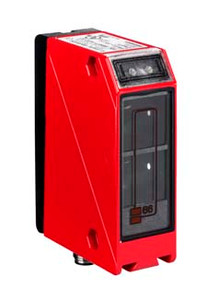

Leuze PRK 96M/P-1832-41 Industrial Sensor System
Leuze
$783.00
The PRK 96M/P-1832-41 is a precision industrial sensor engineered for demanding automation applications. Featuring IP67 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Light source: LED, red emission
Protection rating: IP67 (dust-tight, water-resistant for washdown environments)
Supply voltage: 10...30 V DC with reverse polarity protection
Operating temperature: -40...55 °C (extended cold storage rating)
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model PRK 96M/P-1832-41). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 96
- Operating principle:
- Reflection principle
- Operating range:
- 0 ... 7 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0 ... 8.5 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Red
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 50 mA
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- Light switching
- Switching principle:
- Dark switching
- Switching frequency:
- 1,000 Hz
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Metal
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Dimension (W x H x L):
- 30 mm x 90 mm x 70 mm
- Housing material:
- Metal
- Metal housing:
- Zinc
- Lens cover material:
- Glass
- Net weight:
- 380 g
- Compatibility of materials:
- ECOLAB
- Note:
- Housing part used contains perfluorobutanesulfonic acid (PFBS)
- Type of display:
- LED
- Ambient temperature, operation:
- -40 ... 55 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270902
- ECLASS 8.0:
- 27270902
- ECLASS 9.0:
- 27270902
- ECLASS 10.0:
- 27270902
- ECLASS 11.0:
- 27270902
- ECLASS 12.0:
- 27270902
- ECLASS 13.0:
- 27270902
- ECLASS 14.0:
- 27270902
- ECLASS 15.0:
- 27270902
- ETIM 5.0:
- EC002717
- ETIM 6.0:
- EC002717
- ETIM 7.0:
- EC002717
- ETIM 8.0:
- EC002717
- ETIM 9.0:
- EC002717
- ETIM 10.0:
- EC002717
- Datasheet:
- View
- Declaration of Conformity:
- View
